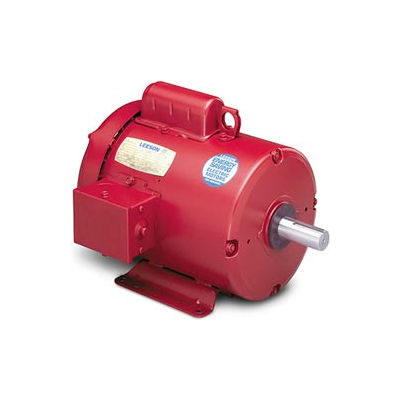

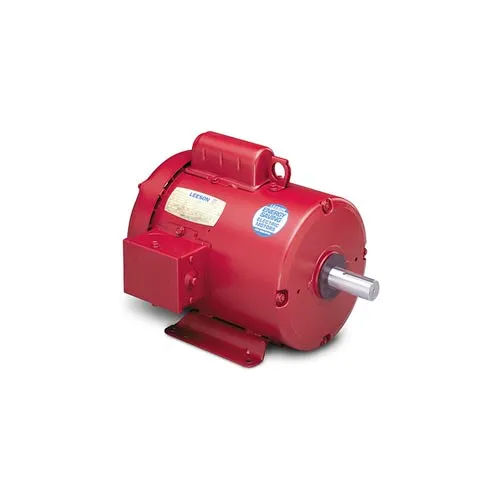

Leeson Motors - 1HP, 115/208-230V, 1725RPM, TEFC, Rigid Mount

Actual product may differ from image shown

Leeson Motors - 1HP, 115/208-230V, 1725RPM, TEFC, Rigid Mount

Item #: WBB217415

(1)

Enter postal code for delivery date estimate

Shipping to 10465 change

$1,080.52 up to 25% OFF

Price: $814.00

Quantity

Customers Also Viewed

Baldor-Reliance Motor FDL3731M, 5HP, 1740RPM, 1PH, 60HZ, 215, 3730LC, TEFC, F1

Baldor-Reliance Motor FDL3731M, 5HP, 1740RPM, 1PH, 60HZ, 215, 3730LC, TEFC, F1

Baldor-Reliance Motor FDL3732M, 7.5HP, 1730RPM, 1PH, 60HZ, 213, 3740LC, TEFC, F

Baldor-Reliance Motor FDL3732M, 7.5HP, 1730RPM, 1PH, 60HZ, 213, 3740LC, TEFC, F

Baldor-Reliance Motor FDL3712TM, 10HP, 1725RPM, 1PH, 60HZ, 215T, 3750LC, TEFC, F

Baldor-Reliance Motor FDL3712TM, 10HP, 1725RPM, 1PH, 60HZ, 215T, 3750LC, TEFC, F

Agricultural Motor: 1HP, 1725RPM, 56 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/208-230V, 1PH, Continuous duty, Manual thermal protection, 1.15 Service Factor, Rigid Mount.

Heavy duty single phase Hi-Torque Motor is designed specifically for severe Farm duty applications.
Mechanical Features: Gasketed capacitor housing and conduit boxes provide protection in all environments. Double sealed ball bearings prelubricated with Exxon POLYREX® EM grease having operating temperature range of -20°F to +350°F and special formulation to provide extra bearing protection. Rubber boot over manual protector reset button provides weather protection.
Electrical Features: Low temperature manual overload protector protects against extreme overload. Class F copper windings and varnish. Capacitor start provides high starting torque with normal starting current.



Weights & Dimensions

  • Shaft Length 1-7/8 in (4.76 cm)
  • Shaft Diameter 5/8
  • Weight 33

Product Details

  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Design Capacitor Start Inductor Run
  • Enclosure TEFC
  • Phase 1
  • Compatible Part/Model Number AO Smith/Magnetek, C313, EB1104M
  • UPC 69172000780
  • Full Load Efficiency 74
  • Brand Leeson
  • Full Load Amps 14/7 FLA
  • Motor RPM 60 Hertz 1725 rpm
  • Thermal Protection Manual
  • Hertz 60 Hz
  • Manufacturers Part Number 110088.00
  • Mounting Location Rigid
  • Bearing Drive End 6203
  • RPM 1725 rpm
  • Rotation CCW °
  • Efficiency Type Standard
  • Material Rolled Steel
  • Ambient Temperature 40 °C
  • RPM Range 1701-1800 rpm
  • Voltage 115/208-230 V
  • Frame 56
  • Service Factor 1.15
  • Horsepower 1 HP

Compliance & Certifications

  • CSA Certified Y
  • UL Y
