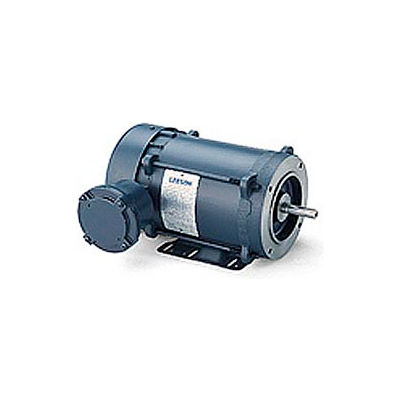

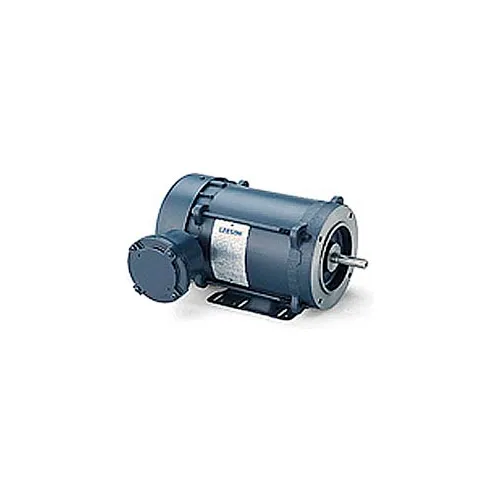

Leeson Explosion-Proof, 3-Phase, C Face Motor With Base - .33 HP - 3450 / 2850 RPM
Leeson Explosion-Proof, 3-Phase, C Face Motors With Base are solidly made for long lasting durability and dependability. Division I, Division II, Class I, Groups C&D Class II, Groups F & G with Conduit Box for hazardous locations. Rugged mechanical construction meeting all requirements for safety. Double shielded, pre-lubricated ball bearings. Inherent automatic overload protection. Explosion-proof conduit box included. Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence. Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence. Note: These motors must be applied in accordance with the National Electrical Code, Article #500. 56 Frame. UL and CSA listed.
Leeson Explosion-Proof, 3-Phase, C Face Motors With Base are solidly made for long lasting durability and dependability. Division I, Division II, Class I, Groups C&D Class II, Groups F & G with Conduit Box for hazardous locations. Rugged mechanical construction meeting all requirements for safety. Double shielded, pre-lubricated ball bearings. Inherent automatic overload protection. Explosion-proof conduit box included. Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence. Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence. Note: These motors must be applied in accordance with the National Electrical Code, Article #500. 56 Frame. UL and CSA listed.
Weights & Dimensions
- Shaft Length 1-7/8 in (4.76 cm)
- Shaft Diameter 5/8
- Weight 29 lbs (13.18 kg)
Product Details
- Horsepower 1/3 HP
- Enclosure Type Explosion Proof
- Is_Motor Yes
- Duty Continuous
- Design Sq Cage Inductor Run
- Enclosure EPNV
- Phase 3
- Compatible Part/Model Number Grainger/Dayton, 3N863
- UPC 69172001413
- Brand Leeson
- Full Load Amps 1.2-1.2/.6 FLA
- Motor RPM 60 Hertz 1725 rpm
- Motor RPM 50 Hertz 1425 rpm
- Thermal Protection Automatic
- Hertz 60/50 Hz
- Manufacturers Part Number 114626.00
- Mounting Location Rigid
- Bearing Drive End 6203
- RPM 1725/1425 rpm
- Rotation CCW/CW °
- Efficiency Type Standard
- Material Rolled Steel
- Ambient Temperature 40 °C
- Efficiency 74.5
- RPM Range 1701-1800 rpm
- Voltage 208-230/460 V
- Frame 56
- Service Factor 1
Compliance & Certifications
- CSA Certified Y
- UL Y
