Leeson Motors - 1/3HP, 208-230/460V, 1725/1425RPM, EPNV, Round Mount, 1.0 S.F.

Actual product may differ from image shown

Leeson Motors - 1/3HP, 208-230/460V, 1725/1425RPM, EPNV, Round Mount, 1.0 S.F.

Item #: WBB217526

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,647.00

Quantity

Customers Also Viewed

Marathon Motors Explosion Proof Motor, H891, 5KC49LN6386X, 1/6HP, 115V, 1200RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, H891, 5KC49LN6386X, 1/6HP, 115V, 1200RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, G650, 056C11G5306, 1/4HP, 115/208-230V, 1200RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G650, 056C11G5306, 1/4HP, 115/208-230V, 1200RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G855, 056C17G5321, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G855, 056C17G5321, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

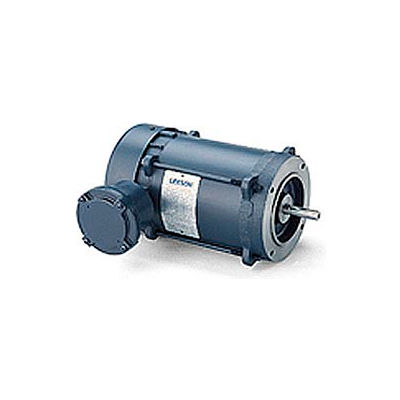

Explosion-Proof Motor: 1/3HP, 1725/1425RPM, 56 Frame, EPNV, 208-230/460V, 3PH, Continuous duty, Automatic thermal protection, 1.0 Service Factor, Round Mount.

Features: Rugged mechanical construction meeting all requirements for safety. UL and CSA listed. Double shielded, pre-lubricated ball bearings are standard. All motors have inherent automatic overload protection. NEMA 1.0 Service Factor except as noted. Explosion-proof conduit box included at no extra cost. Normally-closed thermostats are standard on cast iron motors. Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence. Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence.



Weights & Dimensions

  • Shaft Length 1-7/8 in (4.76 cm)
  • Shaft Diameter 5/8
  • Weight 32 lbs (14.55 kg)

Product Details

  • Enclosure Type Explosion Proof
  • Horsepower 1/3 HP
  • Is_Motor Yes
  • Design Sq Cage Inductor Run
  • Duty Continuous
  • Phase 3
  • Enclosure EPNV
  • Compatible Part/Model Number AO Smith/Magnetek, A027
  • UPC 69172001020
  • Brand Leeson
  • Full Load Amps 1.2-1.2/.6 FLA
  • Motor RPM 60 Hertz 1725 rpm
  • Thermal Protection Automatic
  • Hertz 60/50 Hz
  • Motor RPM 50 Hertz 1425 rpm
  • Manufacturers Part Number 111931.00
  • Mounting Location C-Face Footless
  • Bearing Drive End 6203
  • RPM 1725/1425 rpm
  • Rotation CCW/CW °
  • Efficiency Type Standard
  • Material Rolled Steel
  • Ambient Temperature 40 °C
  • Efficiency 74.5
  • RPM Range 1701-1800 rpm
  • Voltage 208-230/460 V
  • Frame 56
  • Service Factor 1

Compliance & Certifications

  • CSA Certified Y
  • UL Y
