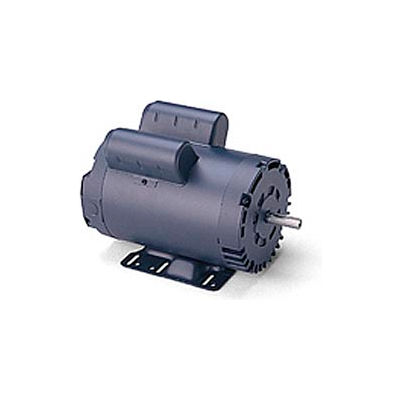

Actual product may differ from image shown
Price: $1,187.00
Customers Also Viewed
Motors are designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction.
Mechanical Features: Prelubricated double shielded, amply sized, ball bearing construction to accommodate varying belt loads and tension.
Electrical Features: High efficiency energy saving designs. Class "F" copper windings. Class "F" varnish. High starting and breakdown torque. Motors are wired for CW rotation facing lead end. They may be reconnected for CCW rotation.
Click here to see our full selection of Motor Controls and Drives.
| Compatibility |
| AO SMITH/MAGNETEK: B384 |
Weights & Dimensions
- Shaft Length 1-7/8 in (4.76 cm)
- Shaft Diameter 5/8
- Weight 45
Product Details
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Duty Continuous
- Design Capacitor Start Capacitor Run
- Enclosure DP
- Phase 1
- Compatible Part/Model Number AO SMITH/MAGNETEK, B384
- UPC 69172034907
- Full Load Efficiency 82.5
- Brand Leeson
- Full Load Amps 20.8 FLA
- Motor RPM 60 Hertz 3450 rpm
- Hertz 60 Hz
- Thermal Protection Manual
- Manufacturers Part Number 116789.00
- Mounting Location Rigid
- Bearing Drive End 6205
- RPM 3450 rpm
- Rotation CCW °
- Efficiency Type Standard
- Material Rolled Steel
- Ambient Temperature 40 °C
- RPM Range 3001-3600 rpm
- Voltage 230 V
- Frame 56
- Service Factor 1
- Horsepower 5 HP
Compliance & Certifications
- CSA Certified Y
- UL Y
There are no questions for this product.
Leeson Motors - 5HP, 230V, 3450RPM, DP, Special Mount, 1.0 S.F.
