Leeson Motors - SPLHP, 208-230V, 3450RPM, DP, Rigid Mount, 1.0 S.F.

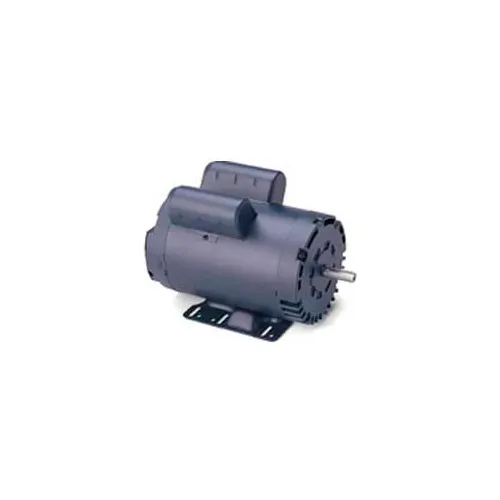

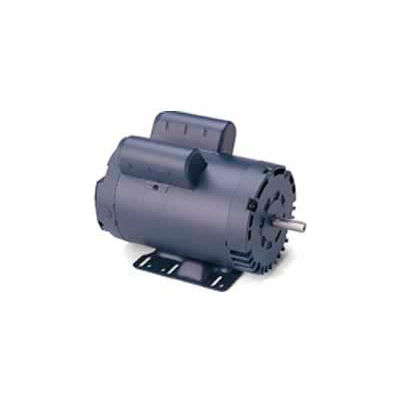

Actual product may differ from image shown

Leeson Motors - SPLHP, 208-230V, 3450RPM, DP, Rigid Mount, 1.0 S.F.

Item #: WBB217593

(1)

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,048.00

Quantity

Customers Also Viewed

Leeson Motors - 3HP, 230V, 3450RPM, DP, Rigid Mount, 1.15 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, DP, Rigid Mount, 1.15 S.F.

Leeson Motors - 1.5HP, 115/230V, 3450RPM, DP, Rigid Mount, SPEC S.F.

Leeson Motors - 1.5HP, 115/230V, 3450RPM, DP, Rigid Mount, SPEC S.F.

Marathon Motors, G951, 56C17D5308, 1 1/2HP, 1800RPM, 115/208-230V, 1PH, 56H FR, DP

Marathon Motors, G951, 56C17D5308, 1 1/2HP, 1800RPM, 115/208-230V, 1PH, 56H FR, DP

Marathon Motors, C704, 5KC49PN2521Y, 1 1/2HP, 3450RPM, 115/230V, 1PH, 56 FR, DP

Marathon Motors, C704, 5KC49PN2521Y, 1 1/2HP, 3450RPM, 115/230V, 1PH, 56 FR, DP

Compressor Duty Motor: SPLHP, 3450RPM, 56 Frame, Drip-Proof (DP), 208-230V, 1PH, Continuous duty, Manual thermal protection, 1.0 Service Factor, Rigid Mount.

Motors are designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction.
Mechanical Features: Prelubricated double shielded, amply sized, ball bearing construction to accommodate varying belt loads and tension.
Electrical Features: High efficiency energy saving designs. Class "F" copper windings. Class "F" varnish. High starting and breakdown torque. Motors are wired for CW rotation facing lead end. They may be reconnected for CCW rotation.


Compatibility
AO SMITH/MAGNETEK: CP1502MV1

Weights & Dimensions

  • Shaft Length 1-7/8 in (4.76 cm)
  • Shaft Diameter 5/8
  • Weight 35

Product Details

  • Mounting Location Rigid
  • Bearing Drive End 205
  • RPM 3450 rpm
  • Rotation CCW °
  • Efficiency Type Standard
  • Material Rolled Steel
  • Ambient Temperature 40 °C
  • RPM Range 3001-3600 rpm
  • Voltage 208-230 V
  • Frame 56
  • Service Factor 1
  • Horsepower 5 HP
  • Enclosure Type Open/Drip Proof
  • Is_Motor Yes
  • Duty Continuous
  • Design Capacitor Start Capacitor Run
  • Enclosure DP
  • Phase 1
  • Compatible Part/Model Number AO SMITH/MAGNETEK, CP1502MV1
  • UPC 69172034984
  • Brand Leeson
  • Full Load Amps 15-15 FLA
  • Motor RPM 60 Hertz 3450 rpm
  • Hertz 60 Hz
  • Thermal Protection Manual
  • Manufacturers Part Number 116523.00

Compliance & Certifications

  • CSA Certified Y
  • UL Y
Customer Review

2.0

  • 5 Star

    0
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    1
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Christine

    Date: April 23, 2019

    False description
    Your review:
    The motor I ordered was fine, except the shaft was a little longer than expected.
