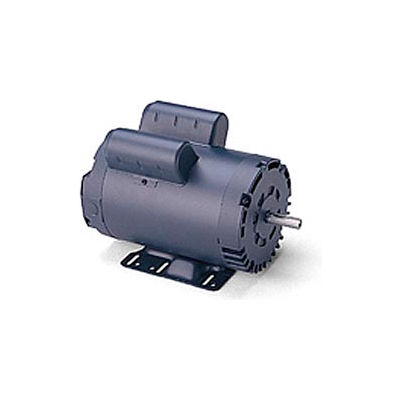

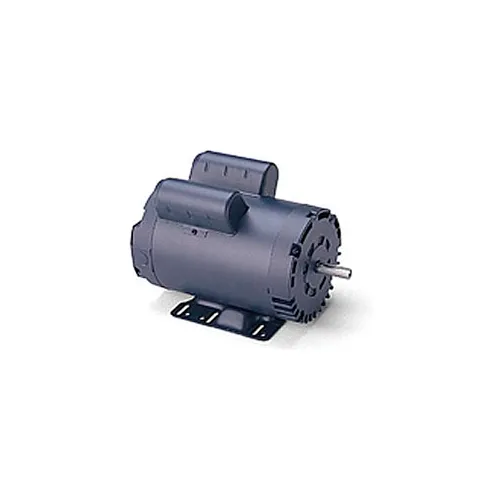

Actual product may differ from image shown
Price: $1,097.00
Customers Also Viewed
Motors are designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction.
Mechanical Features: Prelubricated double shielded, amply sized, ball bearing construction to accommodate varying belt loads and tension.
Electrical Features: High efficiency energy saving designs. Class F copper windings. Class F varnish. High starting and breakdown torque. Motors are wired for CW rotation facing lead end. They may be reconnected for CCW rotation.
Weights & Dimensions
- Shaft Length 1-7/8 in (4.76 cm)
- Shaft Diameter 5/8
- Weight 41
Product Details
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Duty Continuous
- Design Capacitor Start Inductor Run
- Enclosure DP
- Phase 1
- Compatible Part/Model Number AO Smith/Magnetek, B812, CP1302M
- UPC 69172000818
- Full Load Efficiency 76
- Brand Leeson
- Full Load Amps 15 FLA
- Motor RPM 60 Hertz 3450 rpm
- Thermal Protection Manual
- Hertz 60 Hz
- Manufacturers Part Number 110222.00
- Mounting Location Rigid
- Bearing Drive End 6205
- RPM 3450 rpm
- Rotation CCW °
- Efficiency Type Standard
- Material Rolled Steel
- Ambient Temperature 40 °C
- RPM Range 3001-3600 rpm
- Voltage 230 V
- Frame 56
- Service Factor 1.15
- Horsepower 3 HP
Compliance & Certifications
- CSA Certified Y
- UL Y
