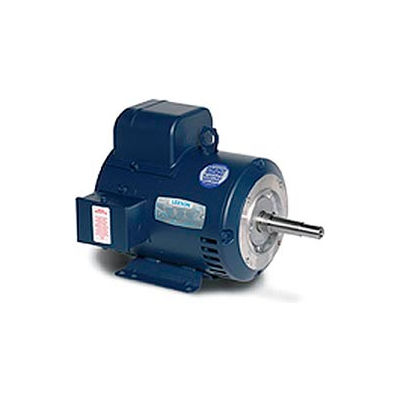

Leeson Motors - 7.5HP, 230V, 3470RPM, DP, Rigid Mount

Actual product may differ from image shown

Leeson Motors - 7.5HP, 230V, 3470RPM, DP, Rigid Mount

Item #: WBB217442

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$3,021.03 up to 49% OFF

Price: $1,533.00

Quantity

Customers Also Viewed

Leeson Motors - 1.5HP, 115/208-230V, 1740RPM, DP, Rigid C Mount, 1.15 S.F.

Leeson Motors - 1.5HP, 115/208-230V, 1740RPM, DP, Rigid C Mount, 1.15 S.F.

Leeson Motors - 2HP, 115/208-230V, 1740RPM, DP, Rigid C Mount

Leeson Motors - 2HP, 115/208-230V, 1740RPM, DP, Rigid C Mount

Baldor-Reliance Pump Motor, EJMM3710T-G, 3 Phase, 7.5 HP, 230/460 Volts, 1800 RPM, 60 HZ, TEFC,213JM

Baldor-Reliance Pump Motor, EJMM3710T-G, 3 Phase, 7.5 HP, 230/460 Volts, 1800 RPM, 60 HZ, TEFC,213JM

Baldor-Reliance Pump Motor, EJMM3709T-G, 3 Phase, 7.5 HP, 230/460 Volts, 3600 RPM, 60 HZ, TEFC,213JM

Baldor-Reliance Pump Motor, EJMM3709T-G, 3 Phase, 7.5 HP, 230/460 Volts, 3600 RPM, 60 HZ, TEFC,213JM

Baldor-Reliance Pump Motor, EJMM3154T-G, 3 Phase, 1.5 HP, 230/460 Volts, 1800 RPM, 60 HZ, ODP, 145JM

Baldor-Reliance Pump Motor, EJMM3154T-G, 3 Phase, 1.5 HP, 230/460 Volts, 1800 RPM, 60 HZ, ODP, 145JM

JM Pump Motor: 7.5HP, 3470RPM, 213 Frame, Drip-Proof (DP), 230V, 1PH, Continuous duty, No thermal protection, 1.15 Service Factor, Rigid Mount.

Mechanical Features: Open drip-proof construction, cooling air exhausts at the shaft end for maximum cooling. Oversized locked bearing on shaft end limits axial shaft movement. Electrical Features: High efficiency copper windings with NEMA 1.15 service factors. UL and CSA recognized designs. Single phase designs are capacitor start/induction run unless indicated otherwise.



Click here to see our full selection of Motor Controls and Drives.


Compatibility
AO Smith/Magnetek: P318
Baldor: JML1509T
Marathon: Z410

Weights & Dimensions

  • Shaft Length 3 in (7.62 cm)
  • Shaft Diameter SPECIAL in
  • Weight 109 lbs (49.55 kg)

Product Details

  • Mounting Location Rigid
  • Bearing Drive End 309
  • RPM 3470 rpm
  • Rotation CCW °
  • Efficiency Type Standard
  • Material Rolled Steel
  • Ambient Temperature 40 °C
  • Efficiency 78.5
  • RPM Range 3001-3600 rpm
  • Voltage 230 V
  • Frame 213
  • Service Factor 1.15
  • Horsepower 7-1/2 HP
  • Enclosure Type Open/Drip Proof
  • Is_Motor Yes
  • Duty Continuous
  • Design Capacitor Start Inductor Run
  • Enclosure DP
  • Phase 1
  • Compatible Part/Model Number AO Smith/Magnetek, P318
  • UPC 69172015468
  • Brand Leeson
  • Full Load Amps 36.5 FLA
  • Motor RPM 60 Hertz 3470 rpm
  • Hertz 60 Hz
  • Thermal Protection No
  • Manufacturers Part Number 140642.00

Compliance & Certifications

  • UL N
