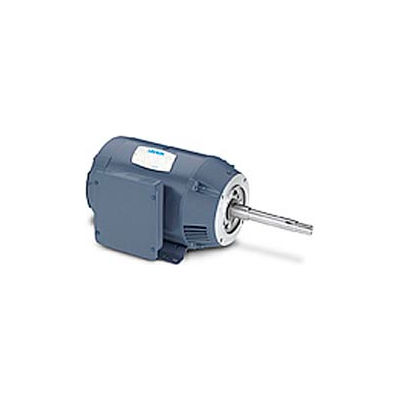

Actual product may differ from image shown
$2,443.97 up to 39% OFF
Price: $1,490.00
Customers Also Viewed
For use with close-coupled pumps having NEMA JP mounting and shaft dimensions. In such applications, the pump impeller is mounted directly on the motor shaft. Designed for continuous duty service.
Mechanical Features: Locked bearing on shaft end limits axial shaft movement. Open drip-proof construction with rigid base mounting. For use where the environment is relatively clean and dry. For outdoor use, an enclosure or drip cover may be preferred.
Electrical Features: UL Recognized and CSA Certified. Single phase designs are capacitor start, induction run.
Weights & Dimensions
- Shaft Length 3 in (7.62 cm)
- Shaft Diameter 1-1/4 in (3.18 cm)
- Weight 121 lbs (55 kg)
Product Details
- Horsepower 7-1/2 HP
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Design Capacitor Start Inductor Run
- Duty Continuous
- Phase 1
- Enclosure DP
- Compatible Part/Model Number AO Smith/Magnetek, P325
- UPC 69172015472
- Brand Leeson
- Full Load Amps 36.5 FLA
- Motor RPM 60 Hertz 3470 rpm
- Thermal Protection No
- Hertz 60 Hz
- Manufacturers Part Number 140646.00
- Mounting Location Rigid
- Bearing Drive End 309
- RPM 3470 rpm
- Rotation CCW °
- Efficiency Type Standard
- Material Rolled Steel
- Ambient Temperature 40 °C
- Efficiency 78.5
- RPM Range 3001-3600 rpm
- Voltage 230 V
- Frame 213
- Service Factor 1.15
Compliance & Certifications
- CSA Certified Y
- UL Y
