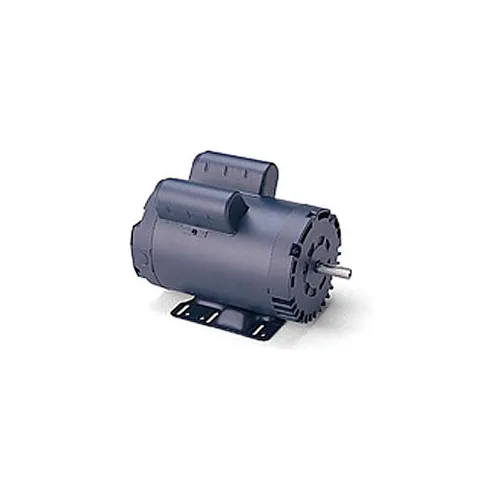

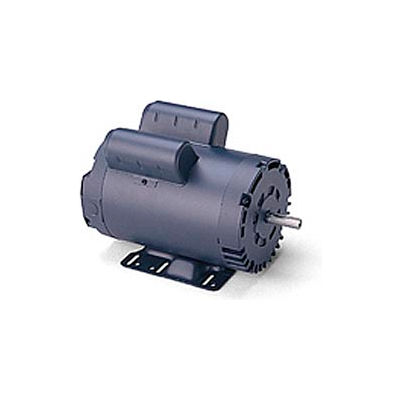

Actual product may differ from image shown
Price: $1,261.00
Customers Also Viewed
Motors are designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction.
Mechanical Features: Prelubricated double shielded, amply sized, ball bearing construction to accommodate varying belt loads and tension.
Electrical Features: High efficiency energy saving designs. Class F copper windings. Class F varnish. High starting and breakdown torque. Motors are wired for CW rotation facing lead end. They may be reconnected for CCW rotation.
Weights & Dimensions
- Shaft Length 2-1/4 in (5.72 cm)
- Shaft Diameter 1-1/8
- Weight 59
Product Details
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Duty Continuous
- Design Capacitor Start Inductor Run
- Phase 1
- Enclosure DP
- Compatible Part/Model Number AO Smith/Magnetek, V200
- UPC 69172001769
- Full Load Efficiency 72
- Brand Leeson
- Full Load Amps 24.5/13-12.4 FLA
- Motor RPM 60 Hertz 1740 rpm
- Thermal Protection No
- Hertz 60 Hz
- Manufacturers Part Number 131515.00
- Mounting Location Rigid
- Bearing Drive End 6206
- RPM 1740 rpm
- Rotation CCW °
- Efficiency Type Standard
- Material Rolled Steel
- Ambient Temperature 40 °C
- RPM Range 1701-1800 rpm
- Voltage 115/208-230 V
- Frame 182
- Service Factor 1.15
- Horsepower 2 HP
Compliance & Certifications
- CSA Certified Y
- UL Y
