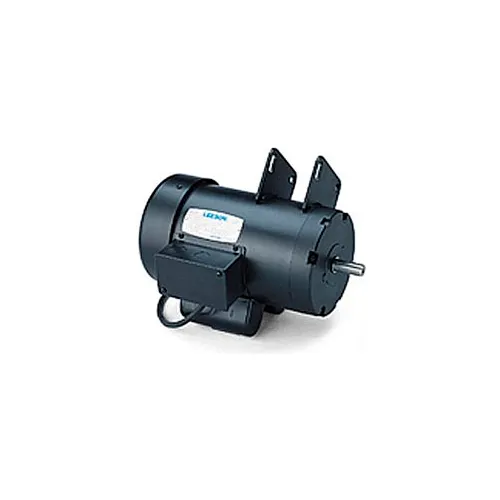

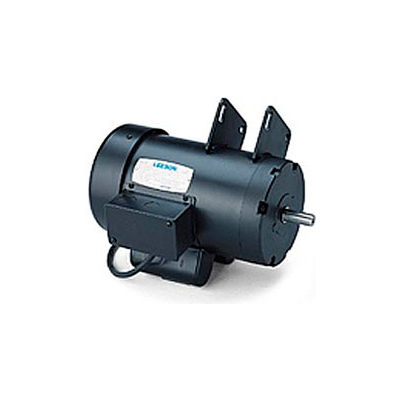

Leeson Motors - 4HP, 230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 4HP, 230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Item #: WBB217427

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$1,779.76 up to 4% OFF

Price: $1,715.00

Quantity

Customers Also Viewed

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount

Leeson Motors - 2HP, 115/230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 2HP, 115/230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Leeson Motors - 1.5HP, 115/230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 1.5HP, 115/230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 2HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Leeson Motors - 2HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Leeson Motors - 1HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.15 S.F.

Leeson Motors - 1HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.15 S.F.

Woodworking Motor: 4HP, 3450RPM, 145 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 230V, 1PH, SAW duty, No thermal protection, 1.0 Service Factor, Round Mount.

Motor pivots on rod for belt tensioning. Totally enclosed fan cooled motor produces extra high breakdown torques for maximum cutting power. Has 13⁄4 long shaft, 3⁄4 diameter with keyway. Added 54 cord to all motors 11/2-4 HP.



Weights & Dimensions

  • Shaft Diameter 3/4
  • Weight 51 lbs (23.18 kg)

Product Details

  • Nameplate Amps 17.6 A
  • Mounting Location Bracket
  • RPM 3450 rpm
  • Rotation CCW °
  • Efficiency Type Standard
  • Material Rolled Steel
  • Ambient Temperature 40 °C
  • RPM Range 3001-3600 rpm
  • Shaft End Bearing 6205
  • Voltage 230 V
  • Frame 145Y
  • Service Factor 1.0
  • Horsepower 4 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Saw
  • Design Capacitor Start Capacitor Run
  • Enclosure TEFC
  • Phase 1
  • UPC 69172001649
  • Brand Leeson
  • Motor RPM 60 Hertz 3450 rpm
  • Hertz 60 Hz
  • Thermal Protection No
  • Manufacturers Part Number 120998.00

Compliance & Certifications

  • CSA Certified Y
  • UL Y
