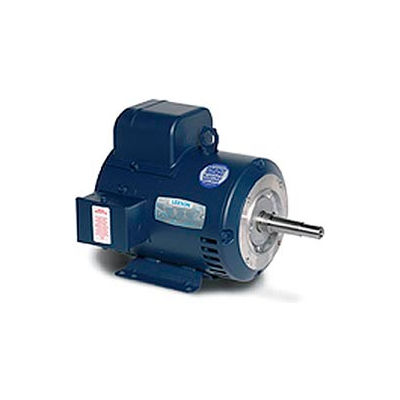

JM Pump Motor: 2HP, 1740RPM, 145 Frame, Drip-Proof (DP), 115/208-230V, 1PH, Continuous duty, No thermal protection, 1.15 Service Factor, Rigid C Mount.
Mechanical Features: Open drip-proof construction, cooling air exhausts at the shaft end for maximum cooling. Oversized locked bearing on shaft end limits axial shaft movement. Electrical Features: High efficiency copper windings with NEMA 1.15 service factors. UL and CSA recognized designs. Single phase designs are capacitor start/induction run unless indicated otherwise.
Weights & Dimensions
Shaft Diameter7/8 in
Weight51 lbs (23.18 kg)
Product Details
Mounting LocationC-Face Rigid
Bearing Drive End6206
RPM1740 rpm
RotationCCW °
Efficiency TypeStandard
MaterialRolled Steel
Ambient Temperature40 °C
Efficiency80
RPM Range1701-1800 rpm
Voltage115/208-230 V
Frame145
Service Factor1.15
Enclosure TypeOpen/Drip Proof
Horsepower2 HP
Is_MotorYes
DutyContinuous
DesignCapacitor Start Capacitor Run
EnclosureDP
Phase1
UPC69172001646
BrandLeeson
Full Load Amps21/10.5 FLA
Motor RPM 60 Hertz1740 rpm
Thermal ProtectionNo
Hertz60 Hz
Manufacturers Part Number120995.00
Compliance & Certifications
CSA CertifiedY
ULY
