Leeson Motors - 1.5HP, 115/230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 1.5HP, 115/230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Item #: WBB217414

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,289.00

Quantity

Customers Also Viewed

Leeson Motors - 2HP, 115/230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 2HP, 115/230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 2HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Leeson Motors - 2HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 1HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.15 S.F.

Leeson Motors - 1HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.15 S.F.

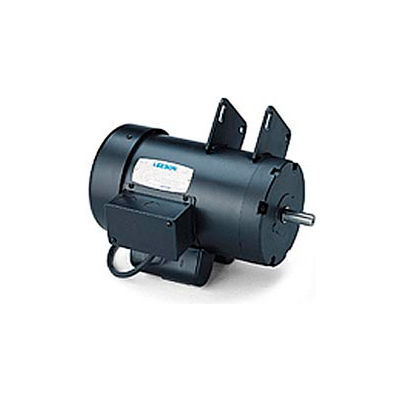

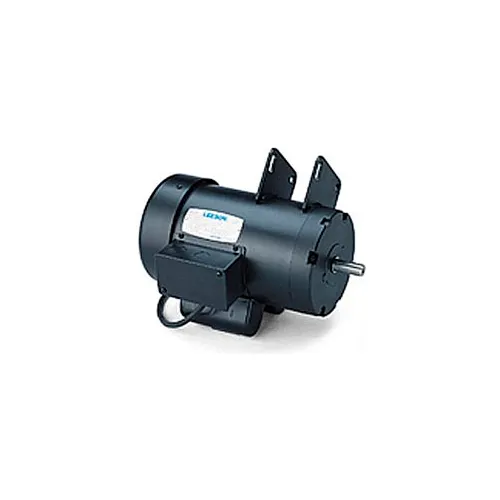

Woodworking Motor: 1.5HP, 3450RPM, 143 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/230V, 1PH, Continuous duty, No thermal protection, 1.0 Service Factor, Round Mount.

Motor pivots on rod for belt tensioning. Totally enclosed fan cooled motor produces extra high breakdown torques for maximum cutting power. Has 13⁄4 long shaft, 3⁄4 diameter with keyway. Added 54 cord to all motors 11/2-4 HP.



Weights & Dimensions

  • Shaft Diameter 3/4
  • Weight 47 lbs (21.36 kg)

Product Details

  • Nameplate Amps 20/10 A
  • Mounting Location Bracket
  • RPM 3450 rpm
  • Rotation CCW °
  • Efficiency Type Standard
  • Material Rolled Steel
  • Ambient Temperature 40 °C
  • Efficiency 69
  • RPM Range 3001-3600 rpm
  • Shaft End Bearing 6205
  • Voltage 115/230 V
  • Frame 143
  • Service Factor 1.0
  • Enclosure Type Totally Enclosed
  • Horsepower 1-1/2 HP
  • Is_Motor Yes
  • Duty Continuous
  • Design Capacitor Start Inductor Run
  • Enclosure TEFC
  • Phase 1
  • UPC 69172001625
  • Brand Leeson
  • Motor RPM 60 Hertz 3450 rpm
  • Thermal Protection No
  • Hertz 60 Hz
  • Manufacturers Part Number 120925.00

Compliance & Certifications

  • CSA Certified Y
  • UL Y
