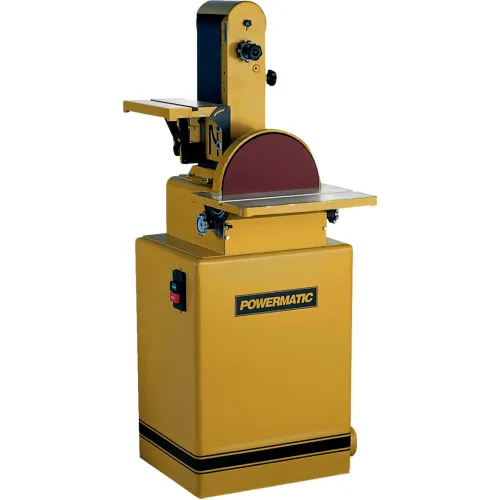

Powermatic Model 31A 1-1/2HP 1-Phase 115/230V 6" x 48" Belt / Disc Sander

Powermatic Model 31A 1-1/2HP 1-Phase 115/230V 6" x 48" Belt / Disc Sander

Item #: WBB57887

Not Yet Rated

Price: $3,730.00

We will notify you when this product is back in stock.
Loaded with features, the 31A from Powermatic can tackle the most demanding tasks. Full cast iron construction allows both metal and woodworking to be done on the same machine and the Integral Dual Dust Port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6 x 48" belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle.

Features:

  • Multi-position belt head locks at any angle from 0° to 90°; includes indexing pin for 0, 45°, and 90° stops
  • Belt and disc tables are precision ground cast iron with miter slots
  • Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding
  • Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
  • 12 disc is balanced for flat, even coverage

Weights & Dimensions

  • Belt Size (L x W) 48 X 6 IN
  • Belt Table Size (L x W) 13-1/4 X 7-1/2 IN
  • Base Size (W x D x H) 20 X 17-1/4 X 27-1/2 IN
  • Table Working Height 34 Disc, 36 Belt IN
  • Dust Port Outside Diameter (Front) 4 IN (10.16 cm)
  • Disc Table Size (W x L) 17-1/4 X 9 IN
  • Disc Diameter 12 IN (30.48 cm)

Product Details

  • Voltage 115/230 V
  • Belt Table Tilt Degrees 45 Down °
  • Amperage 14/7 A
  • Phase 1
  • Dust Collection Mininum CFM Required 400 CFM
  • Disc Speed 2375 RPM
  • Disc Table Tilt Degrees 15 Up, 45 Down
  • Type Belt & Disc Sander
  • Brand Powermatic
  • Motor Horsepower 1-1/2 HP
  • Prewired Voltage 115 V
  • Style Closed Stand
  • Manufacturers Part Number 1791291K
  • Sanding Arm Locking Positions 0/45/90
  • Belt Speed 2410 SFPM

Compliance & Certifications

  • Certifications CSA Certified
