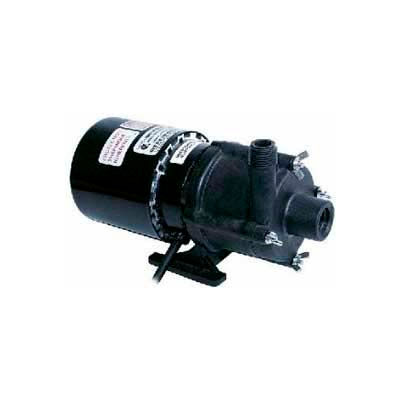

Little Giant® Magnetic Drive Pump TE-3-MD-HC, Highly Corrosive, 115V, 590 At 1', 107 Watts
Magnetically driven pumps for highly corrosive chemicals and solutions. The MD-HC Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polyphenylene sulfide (e.g. Ryton®), Viton®, carbon and ceramic parts. Thermally protected totally enclosed fan-cooled motor with ball bearings. 6 ft power cord and 3-prong molded plug. (230V version has no plug).
Features:
Magnetically driven pumps for highly corrosive chemicals and solutions. The MD-HC Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polyphenylene sulfide (e.g. Ryton®), Viton®, carbon and ceramic parts. Thermally protected totally enclosed fan-cooled motor with ball bearings. 6 ft power cord and 3-prong molded plug. (230V version has no plug).
Features:
- Specific Gravity: Up To 1.1
- Ambient Air Temperature: Up To 77°F (25°C)
- Fluid Temperature: Up to 200°F
Weights & Dimensions
- Discharge Connection Size 1/2 IN
- Width 4 IN (10.16 cm)
- Length 9 IN (22.86 cm)
- Inlet Connection 1/2 IN
- Cord Length 6 FT (1.83 m)
- Suction/Draw Head 16.3 FT (4.97 m)
- Height 5 IN (12.7 cm)
- Weight 9 LBS (4.09 kg)
Product Details
- Discharge Connection Type MNPT
- Voltage 115 V
- Inlet Connection Type FNPT
- Horsepower 1/25 HP
- Gallons per Hour 590 @ 1' GAL/HR
- Wattage 107 W
- Type Magnetic Drive Pump
- Gallons per Minute 9.8 GAL/MIN (37.1 l)
- Temperature of Liquid Pumped 200
- Brand Little Giant
- Hertz 50/60 HZ
- Rotations per Minute 3100 RPM
- Manufacturers Part Number 581604
