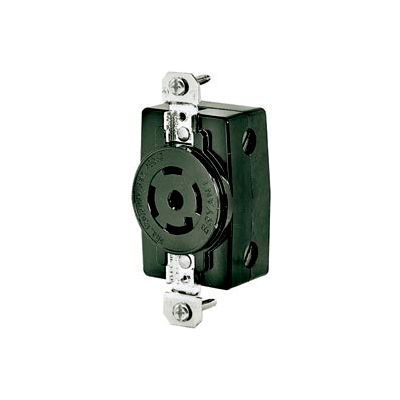

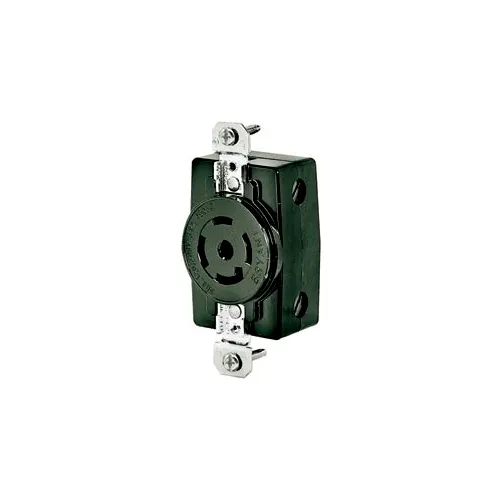

Bryant 40045FR TECHSPEC® Receptacle, 20A, 3ph 120/208V AC 400Hz, Black

Bryant 40045FR TECHSPEC® Receptacle, 20A, 3ph 120/208V AC 400Hz, Black

Item #: WBB215919

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 8

Price: $113.95

Quantity

Customers Also Viewed

Bryant 71430NP TECHSPEC® Plug, L14-30, 30A, 125/250V, Black/White

Bryant 71430NP TECHSPEC® Plug, L14-30, 30A, 125/250V, Black/White

Bryant 71630NP TECHSPEC® Plug, L16-30, 30A, 3ph 480V AC, Black/White

Bryant 71630NP TECHSPEC® Plug, L16-30, 30A, 3ph 480V AC, Black/White

Construction:
  • Base Material: Reinforced Thermoplastic Polyester
  • Face Material: Nylon
  • Terminal Screws: #10 Bronze
  • Terminal Clamp: 040" (10) Copper Alloy
  • Terminals 040" (10) Copper Alloy
  • Ground Contact: 040" (10) Copper Alloy
  • Ground Shunt: 015" (3) Copper Alloy
  • Mounting Strap: 050" (13) Steel (Nickel-Plated)
  • Self Ground Clip: Stainless Steel
  • Mounting Screw: Plated Steel
  • Back Plate: 040" (10) Plated Copper Alloy
Technical Specs:
  • Dielectric Voltage: Withstands 3500V per UL498
  • Maximum working Voltage: 600V AC or 250V DC
  • Current Interupting: Certified for current interrupting at full rated current
  • Temperature rise: Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL498
  • Terminal Identification: (X, Y Z Brass Hot) (G, Green, Grounding) (W, Silver, Neutral)
  • Flammability: UL 94 V2 Minimum
  • Operating Temperatures: -40 deg C to 85 deg C (continuous w/o impact)
Standards:
  • UL Standards: UL Listed to Standard 498 (Attachment Plug and Receptacles)
  • UL Listing File: Ul Listed File #E2258- Guide #RTRT
  • Federal Specifications: Federal Specifications WC596 (where applicable)
  • Complies With: Complies with NEMA Standards WD-1, WD-6 and UL 498
  • Overseas Approval: NOM, CE
  • CSA Standard: Certified to CSA Standard C222 No42M1984 (General Use Receptacles) and C222 No 1822M1987 (Industrial Locking Type, Special Use Attachment Plugs, Receptacles and Connectors) where applicable
  • CSA Certification File: CSA Certified File #LR16215- Guide #365-E-1

Product Details

  • Type Single
  • Made in the USA Yes
  • Min Terminal Accomodation #14 Solid/Stranded
  • Brand Bryant
  • Voltage 120/208 V
  • Poles & Wires 4 Pole, 5 Wire
  • Max Terminal Accomodation #8 Solid/Stranded
  • Manufacturers Part Number 40045FR
  • Amperage 20 A
  • Color Black

Compliance & Certifications

  • NEMA --
