Construction:<ul style="margin-top:0px; padding-top: 5px; padding-bottom: 5px;"><li>Terminal Screws: #10 Bronze</li><li>Cord Grip Assembly: Impact Modified Nylon</li><li>Terminal Cover: Clear Polycarbonate</li><li>Face Terminal Assembly: Impact Modified Nylon</li><li>Cover housing: Super Tough Nylon</li><li>Terminal Clamp Nut: Zinc-Plated Steel</li><li>Assembly Screws: Zinc-Plated Steel</li><li>Plug Blades: Brass, (neutral blade nickel-plated)</li></ul>Technical Specs:<ul style="margin-top:0px; padding-top: 5px; padding-bottom: 5px;"><li>Dielectric Voltage: Withstands 3500V per UL498</li><li>Maximum working Voltage: 600V AC or 250V DC</li><li>Current Interupting: Certified for current interrupting at full rated current</li><li>Temperature rise: Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL498</li><li>Terminal Identification: (X, Y Z Brass Hot) (G, Green, Grounding) (W, Silver, Neutral)</li><li>Cord Accomodation: Round portable service cords in accordance with device ratings as defined in UL Standard 62, CSA C222 No 49</li><li>Cord Grip Range: 3 Wire: 300"-950" (762-2413), 4 and 5 Wire: 465"-1115" (1181-2921)</li><li>Flammability: HB or better per UL94 or CSA 222</li><li>Configuration Type: L16-30</li><li>Operating Temperatures: Maximum continuous 60 deg C, minimum -40 deg C without impact</li></ul>Standards:<ul style="margin-top:0px; padding-top: 5px; padding-bottom: 5px;"><li>UL Standards: UL Listed to Standard 498 (Attachment Plug and Receptacles)</li><li>UL Listing File: UL Listed File #E1381- Guide #AXUT</li><li>Federal Specifications: Federal Specifications WC596 (where applicable)</li><li>Complies With: Complies with NEMA Standards WD-1, WD-6 and UL 498</li><li>Overseas Approval: NOM, CE</li><li>CSA Standard: Certified to CSA Standard C222 No42M1984 (General Use Receptacles) and C222 No 1822M1987 (Industrial Locking Type, Special Use Attachment Plugs, Receptacles and Connectors) where applicable</li><li>CSA Certification File: CSA Certified File #LR16215- Guide #20T2</li></ul>

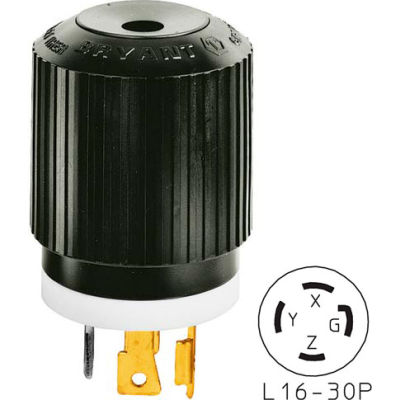

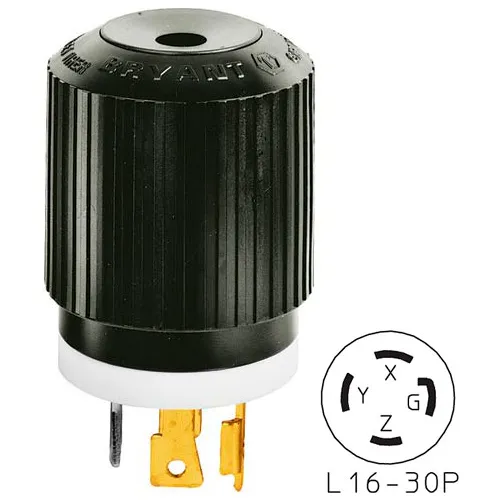

Bryant 71630NP TECHSPEC&#174; Plug, L16-30, 30A, 3ph 480V AC, Black/White
