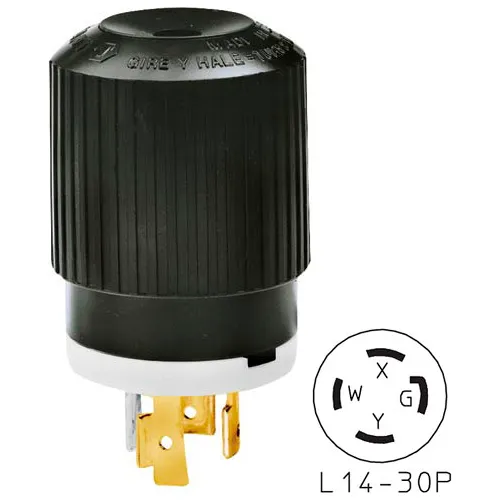

Bryant 71430NP TECHSPEC® Plug, L14-30, 30A, 125/250V, Black/White

Bryant 71430NP TECHSPEC® Plug, L14-30, 30A, 125/250V, Black/White

Item #: WBB216105

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $49.95

Quantity

Customers Also Viewed

Bryant 71630NP TECHSPEC® Plug, L16-30, 30A, 3ph 480V AC, Black/White

Bryant 71630NP TECHSPEC® Plug, L16-30, 30A, 3ph 480V AC, Black/White

Bryant 40045FR TECHSPEC® Receptacle, 20A, 3ph 120/208V AC 400Hz, Black

Bryant 40045FR TECHSPEC® Receptacle, 20A, 3ph 120/208V AC 400Hz, Black

Construction:
  • Terminal Screws: #10 Bronze
  • Cord Grip Assembly: Impact Modified Nylon
  • Terminal Cover: Clear Polycarbonate
  • Face Terminal Assembly: Impact Modified Nylon
  • Cover housing: Super Tough Nylon
  • Terminal Clamp Nut: Zinc-Plated Steel
  • Assembly Screws: Zinc-Plated Steel
  • Plug Blades: Brass, (neutral blade nickel-plated)
Technical Specs:
  • Dielectric Voltage: Withstands 3500V per UL498
  • Maximum working Voltage: 600V AC or 250V DC
  • Current Interupting: Certified for current interrupting at full rated current
  • Temperature rise: Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL498
  • Terminal Identification: (X, Y Z Brass Hot) (G, Green, Grounding) (W, Silver, Neutral)
  • Cord Accomodation: Round portable service cords in accordance with device ratings as defined in UL Standard 62, CSA C222 No 49
  • Cord Grip Range: 3 Wire: 300"-950" (762-2413), 4 and 5 Wire: 465"-1115" (1181-2921)
  • Flammability: HB or better per UL94 or CSA 222
  • Configuration Type: L14-30
  • Operating Temperatures: Maximum continuous 60 deg C, minimum -40 deg C without impact
Standards:
  • UL Standards: UL Listed to Standard 498 (Attachment Plug and Receptacles)
  • UL Listing File: UL Listed File #E1381- Guide #AXUT
  • Federal Specifications: Federal Specifications WC596 (where applicable)
  • Complies With: Complies with NEMA Standards WD-1, WD-6 and UL 498
  • Overseas Approval: NOM, CE
  • CSA Standard: Certified to CSA Standard C222 No42M1984 (General Use Receptacles) and C222 No 1822M1987 (Industrial Locking Type, Special Use Attachment Plugs, Receptacles and Connectors) where applicable
  • CSA Certification File: CSA Certified File #LR16215- Guide #20T2

Product Details

  • Type Plug
  • Min Terminal Accomodation #18 Flexible Cord
  • Brand Bryant
  • Voltage 125/250 V
  • Poles & Wires 3 Pole, 4 Wire
  • Max Terminal Accomodation #8 Flexible Cord
  • Manufacturers Part Number 71430NP
  • Amperage 30 A
  • Color Black/White

Compliance & Certifications

  • NEMA L14-30
