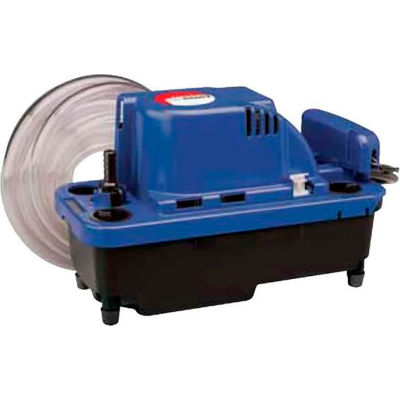

The VCMX-20ULST is designed for condensate removal where gravity drainage is not available for air conditioning or high efficiency gas furnaces systems. It includes a safety switch to prevent overflow of the tank in case of blockage in the discharge line and 20' of 3/8" I.D. vinyl discharge tubing. It features an oil resistant tank, stainless steel motor shaft and flexible installation options. Features a built-in check valve.
- ¼-Turn check valve (allows servicing without removal of tubing; eliminates water spills)
- Patent-Pending Cooling Design (improved cooling increases pump life) Overflow Safety Switch
- Rubber Feet (absorbs vibration on hard surface installations.
- External Test/Run Lever (Quick test/run lever & easy drainage of tank for servicing)
- Oil-resistant tank and check valve (eliminate problem of cracked tank with exposure to oil)
Weights & Dimensions
- Width 4-13/16 in (12.22 cm)
- Shut Off 21 ft (6.4 m)
- Length 10-3/16 in (25.88 cm)
- Cord Length 6 ft (1.83 m)
- Height 6-1/2 in (16.51 cm)
- Discharge Head 3/8" Barb ft
- Suction Draw Head 21 ft (6.4 m)
Product Details
- Operation Fully Automatic: Start, Stop, Safety Switch
- Switch Type External Overflow Safety
- Amperage 1.5 A
- Wattage 93 W
- For Use With Air Conditioner, Gas Furnace, Condensing Boilers
- Plug Configuration 5-15P
- Material ABS Plastic
- Voltage 115 V
- Horsepower 1/30 HP
- Gallons per Hour 75 @ 5'H gal/hr
- Includes 20' of 3/8"ID Tubing
- Phase 1
- Gallons per Minute 1.25 gal/min (4.73 l)
- Brand Little Giant
- Hertz 60 Hz
- Max Temperature 120 °F
- Manufacturers Part Number 554550
- Max Liquid Temperature 140 °F
Warranty
- Warranty 2 yr
Compliance & Certifications
- Certifications cCSAus
