The 230 Volt VCMX-20UL is designed for condensate removal where gravity drainage is not available for air conditioning or high efficiency gas furnaces systems. It features an oil resistant tank, stainless steel motor shaft and flexible installation options. Features a built-in check valve. Optional External Overflow Safety Switch B215777 with 72" cable sold separately.
- ¼-Turn check valve (allows servicing without removal of tubing; eliminates water spills)
- Patent-Pending Cooling Design (improved cooling increases pump life)
- Rubber Feet (absorbs vibration on hard surface installations.
- External Test/Run Lever (Quick test/run lever & easy drainage of tank for servicing)
- Oil-resistant tank and check valve (eliminate problem of cracked tank with exposure to oil)
Weights & Dimensions
- Width 4-13/16 in (12.22 cm)
- Shut Off 20 ft (6.1 m)
- Length 10-3/16 in (25.88 cm)
- Cord Length 6 ft (1.83 m)
- Height 6-1/2 in (16.51 cm)
- Discharge Head 3/8" Barb ft
- Suction Draw Head 19 ft (5.79 m)
Product Details
- Operation Fully Automatic: Start, Stop, Safety Switch
- Amperage 0.6 / 0.5 A
- Wattage 75 W
- For Use With Air Conditioner, Gas Furnace, Condensing Boilers
- Plug Configuration 6-15P
- Material ABS Plastic
- Voltage 230 V
- Horsepower 1/30 HP
- Gallons per Hour 69 @ 5'H gal/hr
- Phase 1
- Gallons per Minute 1.1 gal/min (4.16 l)
- Brand Little Giant
- Hertz 50/60 Hz
- Max Temperature 120 °F
- Manufacturers Part Number 554521
- Max Liquid Temperature 140 °F
Warranty
- Warranty 2 yr
Compliance & Certifications
- Certifications cCSAus
Customer Review
Product Q & A
There are no questions for this product.

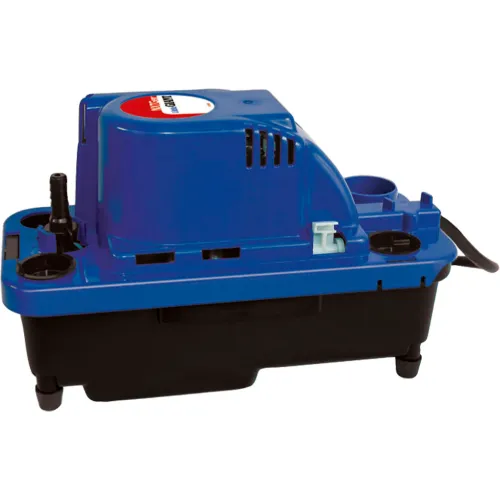

Little Giant® VCMX-20UL Condensate Removal Pump 230V
