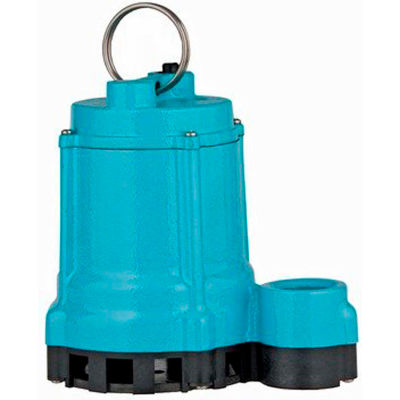

Little Giant® 6EN Series Sump Pump - 10' Power Cord
Little Giant 6EN Series pumps feature 1/3 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Built on the industry's best 6E platform, the 1/3 hp 6EN series consumes only 6.0 amps while producing 50 gpm @ 5 ft. of head and reaching a maximum shut off of 22 ft. The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
Features
Little Giant 6EN Series pumps feature 1/3 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Built on the industry's best 6E platform, the 1/3 hp 6EN series consumes only 6.0 amps while producing 50 gpm @ 5 ft. of head and reaching a maximum shut off of 22 ft. The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
Features
- 1/3 HP Permanent Split Capacitor (PSC) motor with thermal overload protection
- Energy saving low amp draw
- Cooler running motor which extends pump life
- Epoxy coated cast iron motor housing
- Vortex impeller
- Solids handling up to 1/2 inch diameter
- Available in manual or automatic operation with two switch options; integral snap action float or piggyback mechanical float
- On Level: 7" - 10"
- Off Level: 2" - 5"
- 2 year warranty
Weights & Dimensions
- Max Diameter Solids 1/2 in
- Switch Off Height 2 - 5 in
- Min Sump Pit Diameter 12
- Weight 27 lbs (12.27 kg)
- Discharge Connection Size 1-1/2 in (3.81 cm)
- Width 8-1/2 in (21.59 cm)
- Length 8-3/4 in (22.23 cm)
- Cord Length 10 ft (3.05 m)
- Max Head 28 ft (8.53 m)
- Height 11-1/8 in (28.26 cm)
- Switch On Height 7 - 10 in
Product Details
- Discharge Connection Type FNPT
- Impeller Material Nylon
- Switch Type Manual
- Amperage 5 A
- Type Submersible Sump & Light Effluent Pump
- Temperature of Liquid Pumped 140
- Max Fluid Temperature 140 °F
- Material Cast Iron
- Shaft Seal Material Carbon/Ceramic, Nitrile
- Voltage 115 V
- Horsepower 1/3 HP
- Gallons per Hour 3180 gal/hr (12037.61 l)
- Housing Material Cast Iron
- Gallons per Minute 53 gal/min (200.63 l)
- Brand Little Giant
- Series 6EC
- Base Material Plastic
- Solids Handling Yes
- Hertz 60 Hz
- Manufacturers Part Number 506801
- Color Blue
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications CSA
