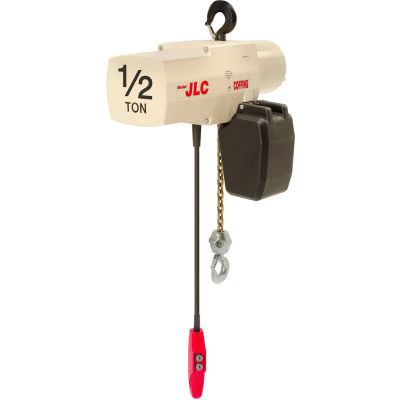

Coffing® JLC 1/2 Ton, Electric Chain Hoist W/ Chain Container, 10' Lift, 16 FPM, 115/230V

Coffing® JLC 1/2 Ton, Electric Chain Hoist W/ Chain Container, 10' Lift, 16 FPM, 115/230V

Item #: WBB2222075

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $4,641.00

Quantity

Customers Also Viewed

Coffing® JLC 1/2 Ton, Electric Chain Hoist W/ Chain Container, 15' Lift, 16 FPM, 115/230V

Coffing® JLC 1/2 Ton, Electric Chain Hoist W/ Chain Container, 15' Lift, 16 FPM, 115/230V

Global Industrial™ Magnetic Glass Whiteboard, 72"W x 48"H

Global Industrial™ Magnetic Glass Whiteboard, 72"W x 48"H

Global Industrial™I Beam Trolley 1,000 Pound Capacity

Global Industrial™I Beam Trolley 1,000 Pound Capacity

CM® ShopStar 300 Lb. Electric Chain Hoist, 10' Lift, 16 FPM, 110V

CM® ShopStar 300 Lb. Electric Chain Hoist, 10' Lift, 16 FPM, 110V

Coffing® JLC 2 Ton, Electric Chain Hoist W/ Chain Container, 10' Lift, 8 FPM, 115/230V

Coffing® JLC 2 Ton, Electric Chain Hoist W/ Chain Container, 10' Lift, 8 FPM, 115/230V

CM Valustar 1/4 Ton Electric Chain Hoist W/ Chain Container, 10' Lift, 16 FPM, 115V

CM Valustar 1/4 Ton Electric Chain Hoist W/ Chain Container, 10' Lift, 16 FPM, 115V

CM Lodestar 2 Ton, Electric Chain Hoist W/ Chain Container, 20' Lift, 8 FPM, 230/460V

CM Lodestar 2 Ton, Electric Chain Hoist W/ Chain Container, 20' Lift, 8 FPM, 230/460V

CM Valustar 1/4 Ton, Electric Chain Hoist W/ Chain Container, 15' Lift, 16 FPM, 115V

CM Valustar 1/4 Ton, Electric Chain Hoist W/ Chain Container, 15' Lift, 16 FPM, 115V

Global Industrial™ Sling, Eye & Eye, 6 Ft L x 2 In W, 6400/5000/12800 Lbs Cap

Global Industrial™ Sling, Eye & Eye, 6 Ft L x 2 In W, 6400/5000/12800 Lbs Cap

Interion® 5-Way Adjustable Ergonomic Stool, Black

Interion® 5-Way Adjustable Ergonomic Stool, Black

Global Industrial™ Stainless Steel Wall Mount Outdoor Ashtray, 1 Gallon

Global Industrial™ Stainless Steel Wall Mount Outdoor Ashtray, 1 Gallon

Lightweight Steel Transport Wheelchair, 19"W Seat, Silver Vein Frame and Black Upholstery

Lightweight Steel Transport Wheelchair, 19"W Seat, Silver Vein Frame and Black Upholstery

Apache Mills Brush & Clean™ Entrance Mat 3/8" Thick 4' x 6' Charcoal

Apache Mills Brush & Clean™ Entrance Mat 3/8" Thick 4' x 6' Charcoal

Coffing JLC Electric Chain Hoist With Chain Container, 1/2 Ton Cap., 10 Ft. Lift, 16 Fpm 115/230V

The JLC is engineered and bulit for the heavy-duty demands of industrial applications. Compact in size but big on features, the JLC boasts a multiple disc motor brake, overload clutch, and chain end stop for safety.

Features:
  • 10, 15 & 20 foot standard lifts. Standard push button drop is 4 feet less than lift. CSA approved.
  • Panel plates provides easy access to controls and motor leads for changing voltage on dual-voltage motors or servicing the hoist.
  • 5-pocket load sheave which provides smoother lifting and reduces chain wear.
  • Mechanical overload protection device protects hoist, operator and supporting structures from damaging overloads, chain jamming and reverse phasing.
  • Oil bath transmission and precision machined alloy steel gears for longer, quieter operation.
  • Chain container is standard on lifts up to 20 ft. single chain and 10 ft. double chain.
  • Lifetime warranty.
  • Made in the UNITED STATES.

Weights & Dimensions

  • Head Room 18-1/8 IN (46.04 cm)
  • Lift 10 FT (3.05 m)
  • Width 8-11/16 IN (22.07 cm)
  • Length 24-1/16 IN (61.12 cm)
  • Lift Speed 16 FT/MIN
  • Height 18-1/8 IN (46.04 cm)
  • Weight Capacity 1000 LBS (454.55 kg)
  • Weight 79 LBS (35.91 kg)

Product Details

  • Voltage 115/230 V
  • Assembly Required Assembled
  • Horsepower 1/2 HP
  • Type Chain Hoist
  • UPC 698303326127
  • Brand Coffing
  • Series JLC
  • Material Aluminum
  • Manufacturers Part Number 08221W
  • Color Family White

Warranty

  • Warranty Lifetime
