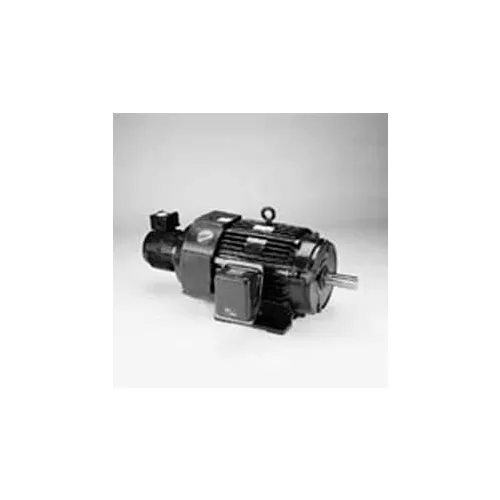

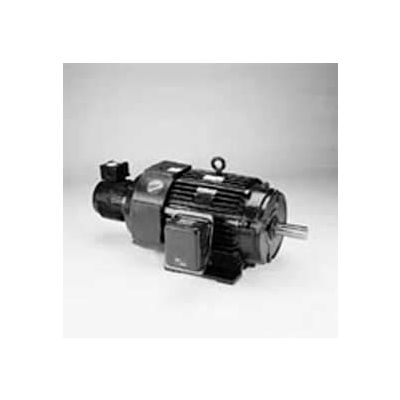

Marathon Motors Inverter Duty Motor, Y525, 143THTN8028, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Marathon Motors Inverter Duty Motor, Y525, 143THTN8028, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Item #: WBB869399

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,097.00

Quantity

Customers Also Viewed

Marathon Motors Inverter Duty Motor, Y525, 143THTN8028, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Designed for inverter or vector applications where up to a 2000:1 constant torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.

  • HORSEPOWER 1
  • ENCLOSURE TENV
  • FRAME 143TC
  • BRAND Marathon Motors
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 230/460
  • THERMAL PROTECTION Thermostats (Normally Closed)
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING Ball
  • UL Recognized Construction
  • CSA Y
  • CATALOG NO. Y525
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER Y525
  • RPM RANGE 1701-1800
  • INSULATION CLASS H
  • INVERTER SPEED RANGE Constant 2000:1
  • OPPOSITE END BEARING SIZE 6205
  • DRIVE END BEARING SIZE 6205
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END Ball
  • ORIENTATION Horizontal
  • IP CODE 43
  • STARTING TYPE Inverter Only
  • NEMA DESIGN B
  • CE Y
  • 60 HERTZ FL Eff 85.50 Percent
  • KVA-CODE m
  • is_motor Yes
  • WEIGHT IN LBS. 61 (27.73 kg)
  • 60 HERTZ SF 1
  • 60 HERTZ FL AMPS 3/1.5
  • 60 HERTZ kW 0.75
  • MODEL NUMBER 143THTN8028
