Price: $7,954.00
Customers Also Viewed

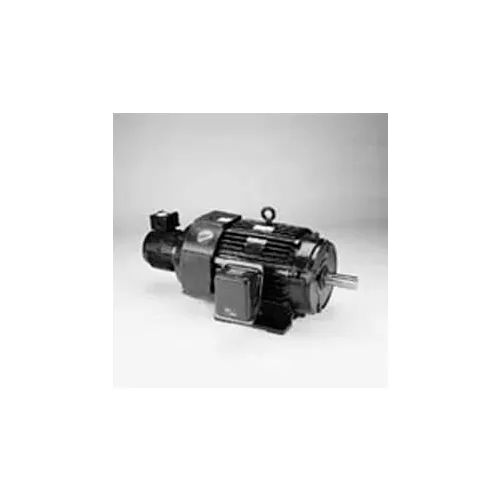

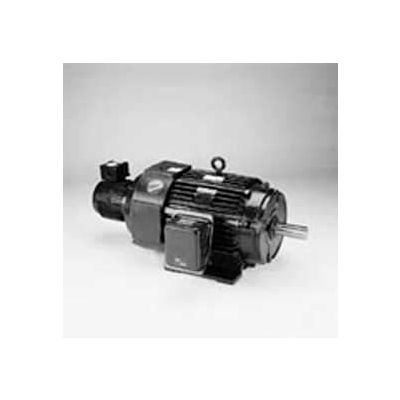

Marathon Motors Inverter Duty Motor, Y513, 324THFPA8038, 40HP, 230/460V, 1800RPM, 3PH, 324TC, TEBC
Designed for inverter or vector applications where up to a 2000:1 constant torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.
Designed for inverter or vector applications where up to a 2000:1 constant torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.
- HORSEPOWER 40
- ENCLOSURE TEBC
- FRAME 324TC
- BRAND Marathon Motors
- MOUNTING C-Face Rigid
- MOTOR RPM 60Hz 1800
- RPM 1800
- PHASE 3
- VOLTAGE 230/460
- THERMAL PROTECTION Thermostats (Normally Closed)
- AMBIENT TEMP C 40
- ENCLOSURE TYPE Totally Enclosed
- OPPOSITE END BEARING Ball
- UL Recognized Construction and Protector
- CSA Y
- CATALOG NO. Y513
- DUTY Continuous
- MANUFACTURERS PART NUMBER Y513
- RPM RANGE 1701-1800
- INSULATION CLASS H
- INVERTER SPEED RANGE Constant 2000:1
- OPPOSITE END BEARING SIZE 6311
- DRIVE END BEARING SIZE 6312
- ASSEMBLY F1 (F2 Modification Available)
- BEARING-DRIVE-END Ball
- ORIENTATION Horizontal
- IP CODE 43
- STARTING TYPE Inverter Only
- NEMA DESIGN A
- CE Y
- 60 HERTZ FL Eff 91.70 Percent
- KVA-CODE G
- is_motor Yes
- WEIGHT IN LBS. 531 (241.36 kg)
- 60 HERTZ SF 1
- 60 HERTZ FL AMPS 100/50
- 60 HERTZ kW 30
- MODEL NUMBER 324THFPA8038
