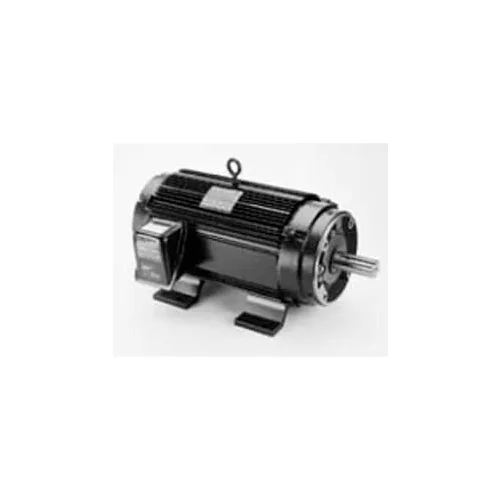

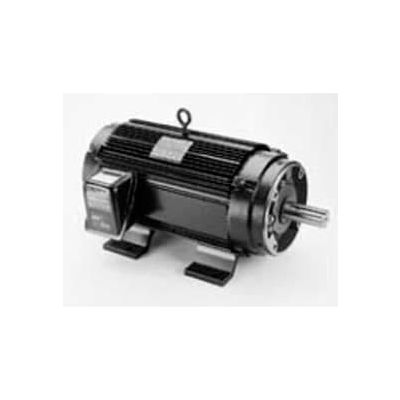

Marathon Motors Inverter Duty Motor, Y284, 145THTR15540, 1.5HP, 230/460V, 1800RPM, 3PH, 145TC, TENV

Marathon Motors Inverter Duty Motor, Y284, 145THTR15540, 1.5HP, 230/460V, 1800RPM, 3PH, 145TC, TENV

Item #: WBB869693

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,429.00

Quantity

Customers Also Viewed

Marathon Motors Inverter Duty Motor, Y284, 145THTR15540, 1.5HP, 230/460V, 1800RPM, 3PH, 145TC, TENV

The Max+ incorporates low rotor inertia for fast starts, stops, ad reversals. Coupled with a encoder make this useful in applications traditionally served only by servo systems. The Max+ is also suitable for all applications where up to a 1000:1 Constant Torque speed range.

  • HORSEPOWER 1 1/2
  • ENCLOSURE TENV
  • FRAME 145TC
  • BRAND Marathon Motors
  • MOUNTING C-Face Removable Base
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 230/460
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING Ball
  • UL Recognized Construction
  • CSA Y
  • CATALOG NO. Y284
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER Y284
  • RPM RANGE 1701-1800
  • INSULATION CLASS H
  • INVERTER SPEED RANGE Constant 1000:1
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6205
  • ASSEMBLY F1 Only
  • BEARING-DRIVE-END Ball
  • ORIENTATION Horizontal
  • IP CODE 43
  • STARTING TYPE Inverter Only
  • NEMA DESIGN B
  • CE Y
  • 60 HERTZ FL Eff 85.50 Percent
  • KVA-CODE R
  • is_motor Yes
  • WEIGHT IN LBS. 51 (23.18 kg)
  • 60 HERTZ SF 1
  • 60 HERTZ FL AMPS 4.8/2.4
  • 60 HERTZ kW 1.12
  • MODEL NUMBER 145THTR15540
