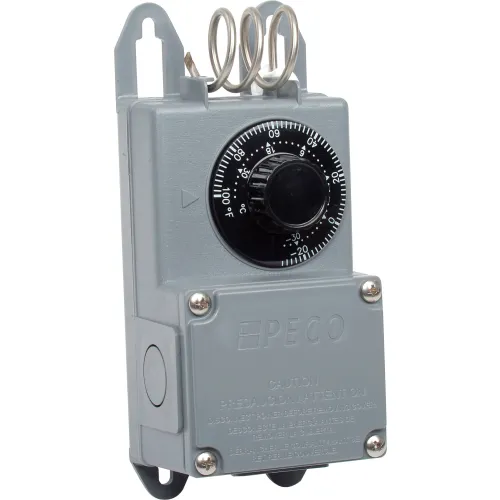

PECO Industrial Coiled Temperature Controller TF115-023 Temperature Range -30°-100°F with Nema 4X Enclosure
Features:
Features:
- T115 thermostat offers one control for Heating or Cooling
- Its NEMA 4X Enclosure Complies with N.E.C. Article 547
- The low mass, high surface area of stainless steel coiled sensor provides rapid response to temperature change
- Featuring SPDT switches it delivers reliable temperature control for industrial, commercial, and agricultural applications
- 1 Heat, 1 Cool Stage
- 1 Year Warranty
Weights & Dimensions
- Physical Dimensions 3.1"W x 6.5"H x 2.5"D
- Capillary Length Coiled Capillary FT
Product Details
- Bulb Coiled Air - Stainless
- Switch Action SPDT
- Voltage 277 / 240 / 208 / 120 / 24 V
- Amps @ 277V 110 AMP FLA; 50A LRA; 22 AMP Non-Inductive; 125 VA Pilot Duty A
- Temperature Control Range 30 to 100 °F
- Power Type Hardwired
- Amps @ 208V 13.2 AMP FLA; 66A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A
- Type Mechanical
- For Use With Refrigeration / Industrial / Agricultural
- Differential Temperature 6 °F
- Stages Single
- Brand Peco
- Temperature Operating Range -30 to 100 °F
- Manufacturers Part Number TF115-023
- Amps @ 120V 16 AMP FLA; 80A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A
- Amps @ 240V 12 AMP FLA; 60A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A
Warranty
- Warranty 1 YR
Compliance & Certifications
- Certifications UL, CSA
- NEMA Rating 4X
⚌
