12" Explosion Proof Direct Drive Duct Fan - 1 Phase 1/2 HP

12" Explosion Proof Direct Drive Duct Fan - 1 Phase 1/2 HP

Item #: WBB182874

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 115 / 230
  • 230 / 460

115 / 230

Price: $1,246.00

Quantity

Customers Also Viewed

Explosion Proof Direct Drive Duct Fan - 12"

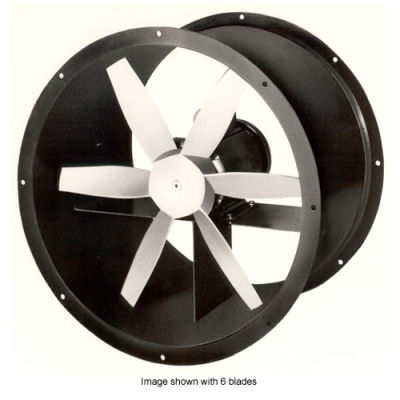

This Explosion Proof Direct Drive Fan withstands environments with explosive gases. Ideal for duct applications in mills, mines, foundries, factories and more. Exhaust axial fan helps remove fumes, dust, smoke or steam from poorly ventilated areas. Drum housing is made of heavy gauge all welded steel. Fan blades are made of non-sparking cast aluminum and are powered by an explosion proof motor to handle environments with explosive gases present. Drum features angle iron flanges welded on each end. Angle flanges are pre-drilled with eight 7/16" diameter holes around the bolt circle for easy mounting. Single phase design. Horsepower rating based upon maximum speed/load.Motor Ships Separately

Product Specifications

  • ASSEMBLYAssembled
  • BLADE QUANTITY4
  • BOLT CIRCLE INCHES13-1/8 (33.34 cm)
  • BRANDAmericraft
  • CFM HIGH1,875
  • CONSTRUCTIONSteel Enclosure / Aluminum Propellers
  • DECIBELS (DBA)82
  • DEPTH INCHES14 (35.56 cm)
  • DESCRIPTIONDirect Drive Duct Fan
  • DRIVE TYPEDirect
  • FAN DIAMETER INCHES12 (30.48 cm)
  • HEIGHT INCHES14 (35.56 cm)
  • HORSEPOWER1/2
  • MANUFACTURER PART NUMBERDF12-1/2-1-EXP
  • PHASE1
  • RPM HIGH3,450
  • VOLTAGE115 / 230
  • WIDTH INCHES14 (35.56 cm)
