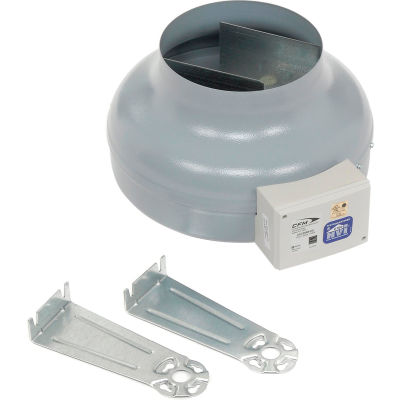

Continental Fan AXC200B-ES In-Line Duct Fan 8" Energy Star 579 CFM

Continental Fan AXC200B-ES In-Line Duct Fan 8" Energy Star 579 CFM

Item #: WB245985

(3)

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $355.95

Quantity

Customers Also Viewed

ENERGY STAR IN-LINE RANGE HOOD EXHAUST FANS
AXC in-line duct fans are the ideal air movers for residential, commercial, and light industrial ventilation applications. The quiet and efficient backward-curved impeller is capable of developing significant pressure, and the in-line configuration simplifies installation, saving time and money! AXC sizes range from 4" to 14", with airflows ranging from 147 cfm to 1400 cfm. The unique motor design, combined with high-quality materials and workmanship, results in a truly versatile fan.

Features & Benefits of AXC In-line Duct Fans
  • Heavy-gauge, drawn steel housing with baked epoxy finish .
  • 120V operation, other voltages available .
  • Easy to install – mounting brackets included .
  • May be mounted in any position .
  • Fans may be used to supply or exhaust air .
  • Suitable for air temperatures up to 140 F / 60 C .
  • Energy efficient – speed controllable (optional solid state speed control) .
  • Optional pre-wired with 120V power cord (AXC-C) .
  • Exceptionally quiet and efficient BC centrifugal motorized impeller .
  • External rotor motor design results in superior motor cooling and durability .
  • Permanently lubricated ball bearing motor for maintenance-free operation .
  • Automatic reset thermal overload protection .
  • Fan and motor are precision balanced for quiet and vibration-free operation .
  • Easily accessible, external junction box with pre-wired capacitor .
  • Five year warranty .
  • Fans are HVI certified for airflow and power at 0.2" SP.

AXC in-line duct fans can solve many air moving problems. They are designed to boost airflow through long or complex duct runs, and provide ideal solutions for areas that are hard to heat or cool.

Bathroom Exhaust
AXC in-line duct fans are the strongest and quietest bathroom fans available today. These fans allow the exhaust of multiple vents or bathrooms with one fan. They are user friendly, easy to install, and can be located directly over a shower.
Range Hood Exhaust
AXC in-line duct fans can be used as a principle exhaust fan, or as a booster fan to improve the efficiency of an existing residential range hood. These fans can be variable speed controlled by using an independent speed controller, or by tying into an existing range hood controller. The heavy gauge housing, with epoxy coating inside and out, provides a rugged fan with superior corrosion protection.
Duct Boosting
Many homes and office buildings have at least one area that presents a problem for heating or cooling. AXC in-line duct fans are designed to boost airflow through long or complex duct runs, resulting in better air comfort in the "problem" areas.

Product Specifications

  • AMPS1.63
  • AMPS RANGE1-2
  • APPROVALS OR CERTIFICATIONSCSA & UL Listed
  • BRANDContinental Fan
  • Base Model Number245985
  • CFM HIGH579
  • COLORGray
  • CONSTRUCTIONSteel / Epoxy Coated
  • DECIBELS (DBA)60
  • DUCT SIZE INCHES8 (20.32 cm)
  • HEIGHT INCHES13-3/16 (33.5 cm)
  • HEIGHT RANGE12-24"
  • HERTZ (HZ)60
  • INLET/OUTLET DIAMETER INCHES7-13/16 (19.84 cm)
  • LENGTH INCHES9-1/8 (23.18 cm)
  • LENGTH RANGE1-12"
  • LIMITED WARRANTY YEARS5
  • MANUFACTURERS PART NUMBERAXC200B-ES
  • MOTOR TYPETotally Enclosed
  • PHASE1
  • RPM HIGH2,700
  • RPM HIGH RANGE2000-3000
  • VOLTAGE120
  • VOLTAGE RANGE115-120
  • WATTS188
  • WEIGHT LBS11.0 (5 kg)
Customer Review

4.5

  • 5 Star

    1
  • 4 Star

    2
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: STEPHEN

    Date: April 23, 2019

    Continental In-Line Fan
    Your review:
    The fan we purchased as was described. Specifications were accurate and the fan is performing as required.
  • Reviewer: Doris/dj

    Date: April 23, 2019

    Fan Performance
    Your review:
    Fan removes stale air, smells and smoke pretty quickly. Only problem is when it's first turned on it sounds like it has to 'rev-up' and is noisy. I'm having the installer take a look to see if there's a problem with the fan or the installation. Otherwise...a good product.
  • Reviewer: Matheus

    Date: September 15, 2011

    This thing really Sucks:)
    Your review:
    It's a little turbine. Not mounted yet as the mounts didn't come with the product but over all the quality is good. Takes a couple seconds to get it going. 5 seconds to reach full suction power.
