Price: $382.95
Customers Also Viewed
✓ Yellow color finish provides high-visibility
✓ Arm accommodates various locations and applications
✓ Fan increase air circulation and ventilation in many work spaces

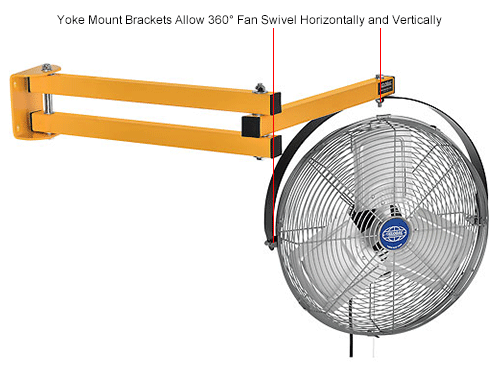

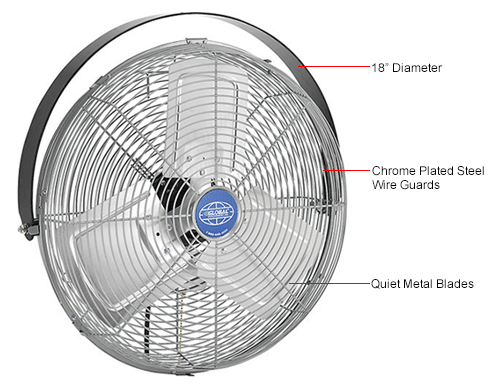

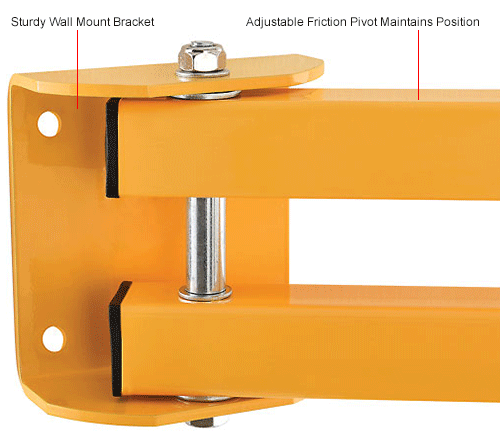

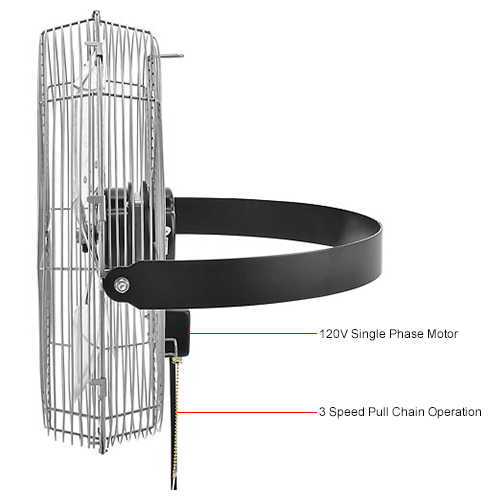

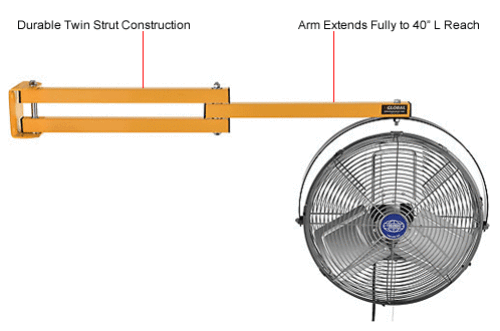

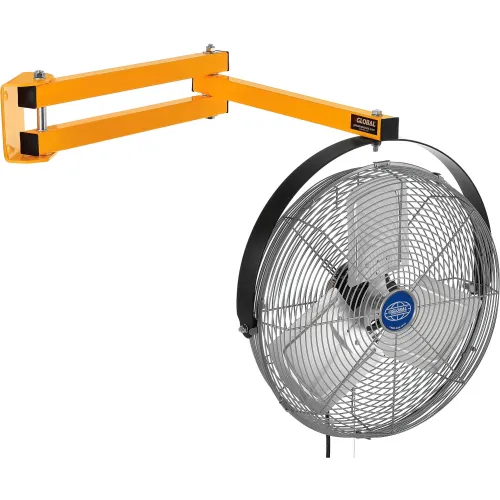

Provide adequate cooling around your facility with the 18" Global Industrial™ Double Arm Loading Dock Fan. Ideal for ventilating loading docks, shipping areas, warehouses, and a variety of industrial applications, 40" steel twin-strut arms will not sag and extend allowing for a wide range of motion. The fan features 3-speed settings with a pull chain control and is powered by single phase motor with a 10' long conductor cord. The fan blades are constructed of durable and long-lasting aluminum with double locking guards. Wall bracket and yoke included. OSHA, UL, RoHS, and cUL Listed. 2-Year Limited Warranty.
✓ Arm accommodates various locations and applications
✓ Fan increase air circulation and ventilation in many work spaces
Provide adequate cooling around your facility with the 18" Global Industrial™ Double Arm Loading Dock Fan. Ideal for ventilating loading docks, shipping areas, warehouses, and a variety of industrial applications, 40" steel twin-strut arms will not sag and extend allowing for a wide range of motion. The fan features 3-speed settings with a pull chain control and is powered by single phase motor with a 10' long conductor cord. The fan blades are constructed of durable and long-lasting aluminum with double locking guards. Wall bracket and yoke included. OSHA, UL, RoHS, and cUL Listed. 2-Year Limited Warranty.
Weights & Dimensions
- Weight 30 lbs (13.64 kg)
- Width 22 in (55.88 cm)
- Fan Diameter 18 in (45.72 cm)
- Length 40 in (101.6 cm)
- Cord Length 10 ft (3.05 m)
- Height 24 in (60.96 cm)
- Depth 7-1/2 in (19.05 cm)
Product Details
- Number of Blades 3
- Number of Speeds 3
- Blade Type Aluminum
- Mounting Location Wall
- Assembly Required Unassembled- Fan with Yoke and Dock Arm
- Amperage 1.45 A
- Type Dock Fan
- For Use With General Cooling, Truck Cooling, Pick Modules Tight Spaces
- Material Metal
- RPM High 1,500 rpm
- CFM 3200/3850/4600 CFM
- Voltage 120 V
- Description Double Arm Dock Fan
- Horsepower 1/3 HP
- Motor Type Open Air Over
- Phase 1
- Oscillating/Non Oscillating Non-Oscillating
- Power Cord Type SJT 3 Conductor
- Watts 150 W
- Brand Global Industrial
- Max Ambient Temperature 104 °F
- Hertz 60 Hz
- Decibels 61
- Manufacturers Part Number 292746
- Fan Type Industrial
- Color Silver
Warranty
- Warranty 2 yr
Compliance & Certifications
- Certifications UL & cUL Listed, OSHA & UL507 Compliant
⚌
Photo/Video Gallery
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Fred
Date: March 22, 2023
-
Reviewer: JEFF
Date: July 07, 2022
Your review:
great product, easy to assemble and hang on wall, moves alot of air, so far only put on 1 of three speeds - thanks - -
Reviewer: Peter
Date: July 02, 2021
Your review:
Heavy duty quality. Moves a lot of air. Excellent addition to our gym. -
Reviewer: Roy Belluz
Date: October 25, 2019
Your review:
The Fan came ready to assemble and was packed well. I'm using it at my BBQ area. I am now able to pull it away from the wall it is attached to and direct air at the smoke from the BBQ pit pushing it away from me the cook and my beer drinking sample tasters. It works well and does the job. My only complaint is that the mounting bracket and attached bar sag somewhat and the assembly does not remain level when using the fan at its full extension. I suggest the support bracket be reinforced to keep the extension arms straight and level. Over all I am pleased with your product.
