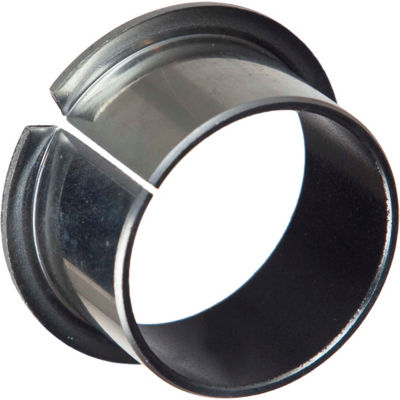

Isostatic TU® Flange Bearing 502027, Steel-Backed PTFE Lined, 1-1/4"ID X 1-13/32"OD X 1-1/2"L
Features
Features
- Self-lubricating dry sliding bearing
- Ideal for heavy loads at moderate speeds or light loads at high speeds
- Temperature range of -328°F to +536°F
- A steel-backed composite material comprised of low carbon steel, sintered bronze and PTFE lined
- Load at Speed - PV Max Value (PSI / SFM) = 102,000
- Load - P Max Value = 36,250 lb/in²
- Speed - V Max Value = 1,900 ft²/min
Weights & Dimensions
- Speed - V Max Value 1,900 ft²/min
- Flange Nominal Thickness 5/64 IN
- Load P Max Value 36,250 lb/in²
- Nominal Length 1-1/2 IN (3.81 cm)
- Nominal Inner Diameter 1-1/4 IN (3.18 cm)
- Nominal Outer Diameter 1-13/32 IN (3.57 cm)
Product Details
- Flange Nominal OD 1-3/4 IN (4.45 cm)
- Description Flange Bearing - INCH
- Load @ Speed Pv Max Value (PSI/SFM) 102,000
- Brand Isostatic
- Series TU®
- Material Steel-Backed PTFE Lined
- Manufacturers Part Number 502027
- Catalog Number 20FTU24
