Minimum Quantity: 13
Price: $5.60
Customers Also Viewed

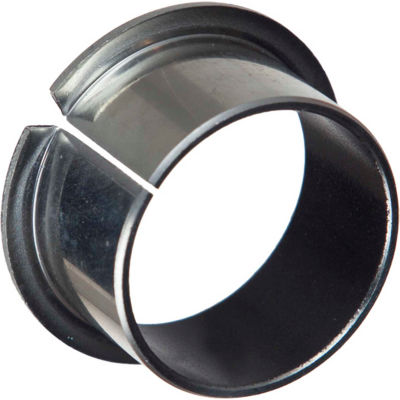

Isostatic TU® Flange Bearing 502023, Steel-Backed PTFE Lined, 1"ID X 1-1/8"OD X 1"L
Features
Features
- Self-lubricating dry sliding bearing
- Ideal for heavy loads at moderate speeds or light loads at high speeds
- Temperature range of -328°F to +536°F
- A steel-backed composite material comprised of low carbon steel, sintered bronze and PTFE lined
- Load at Speed - PV Max Value (PSI / SFM) = 102,000
- Load - P Max Value = 36,250 lb/in²
- Speed - V Max Value = 1,900 ft²/min
Weights & Dimensions
- Speed - V Max Value 1,900 ft²/min
- Flange Nominal Thickness 1/16 IN
- Load P Max Value 36,250 lb/in²
- Nominal Length 1 IN (2.54 cm)
- Nominal Inner Diameter 1 IN (2.54 cm)
- Nominal Outer Diameter 1-1/8 IN (2.86 cm)
Product Details
- Flange Nominal OD 1-3/8 IN (3.49 cm)
- Description Flange Bearing - INCH
- Load @ Speed Pv Max Value (PSI/SFM) 102,000
- Brand Isostatic
- Series TU®
- Material Steel-Backed PTFE Lined
- Manufacturers Part Number 502023
- Catalog Number 16FTU16
Customer Review
Product Q & A
There are no questions for this product.
Isostatic TU® Flange Bearing 502023, Steel-Backed PTFE Lined, 1"ID X 1-1/8"OD X 1"L
