For use on pumps designed for fire pump duty and installed per NFPA-20. These Dripproof motors are intended for installation in relatively clean and dry environments. Fire Pumps motors are not recommended for use with variable frequency drives.

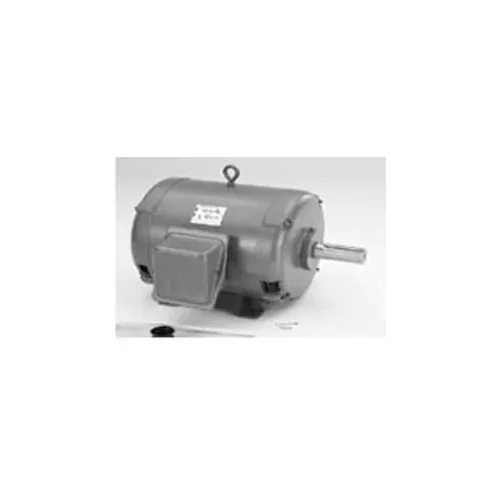

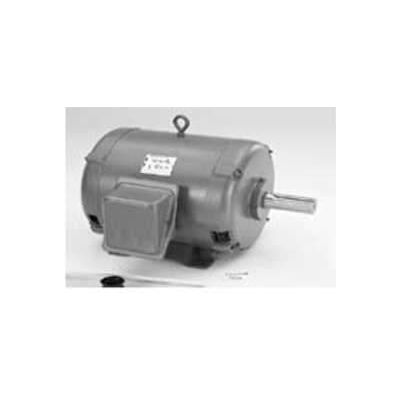

Marathon Motors Fire Pump Motor, U517, 60HP, 200/400V, 3600RPM, 3PH, 326TS FR, DP
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$8,009.00
1
1
Ships in 7 Business Days (ships from US)
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 340 lbs |
| Opposite End Bearing Size | 6311 |
| Dimension C | 26 in |
| Drive End Bearing Size | 6312 |
Product Details
| 60 Hertz kW | 40 kW |
| KVA Code | G |
| IP Code | 12 |
| 60 Hertz RPM | 3600 rpm |
| Motor RPM 60 Hertz | 3600 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | U517 |
| Enclosure | DP |
| Service Factor | 1.15 |
| Bearing Drive End | 6312 |
| Brand | Marathon Motors |
| RPM | 3,600 rpm |
| Insulation Class | F |
| Horsepower | 60 HP |
| Orientation | Horizontal |
| Frame | 326TS |
| Starting Type | PWS(LV Only) & YDRUN |
| Enclosure Type | Open/Drip Proof |
| Voltage | 200, 400 V |
| Full Load Efficiency | 93 |
| Full Load Amps | 155/77.5 FLA |
| Duty | Continuous |
| Ambient Temperature | 50 °C |
| RPM Range | 3001-3600 rpm |
Compliance & Certifications
| CSA Certified | Y |
| CE Approved | Y |
| NEMA Design | B |
| UL | UL Listed |
