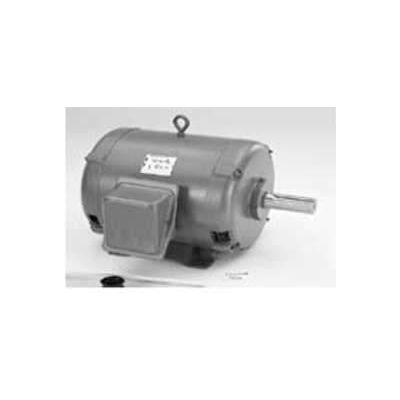

Marathon Motors Fire Pump Motor, H178, 300HP, 460V, 3600RPM, 3PH, 447TS FR, DP

Actual product may differ from image shown

Marathon Motors Fire Pump Motor, H178, 300HP, 460V, 3600RPM, 3PH, 447TS FR, DP

Item #: WBB869902

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $21,521.00

Quantity

Customers Also Viewed

Marathon Motors Fire Pump Motor, H178, 300HP, 460V, 3600RPM, 3PH, 447TS FR, DP

For use on pumps designed for fire pump duty and installed per NFPA-20. These Dripproof motors are intended for installation in relatively clean and dry environments. Fire Pumps motors are not recommended for use with variable frequency drives.

  • HORSEPOWER 300
  • ENCLOSURE DP
  • FRAME 447TS
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 3600
  • MOTOR RPM 50Hz 3000
  • RPM 3600/3000
  • PHASE 3
  • VOLTAGE 460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 50
  • ENCLOSURE TYPE Open/Drip Proof
  • OPPOSITE END BEARING 6314
  • WEIGHT 1940 (881.82 kg)
  • UL UL Listed
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER H178
  • RPM RANGE 3001-3600
  • INSULATION CLASS F
  • FL AMPS 332
  • OPPOSITE END BEARING SIZE 6314
  • DRIVE END BEARING SIZE 6314
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6314
  • ORIENTATION Horizontal
  • IP CODE 12
  • STARTING TYPE PWS & YDRUN
  • NEMA DESIGN B
  • CE Y
  • 50 Hertz kW 187
  • 50 Hertz HP 250
  • 50 Hertz SF 1.15
  • FL EFFICIENCY 95
  • 50 Hertz FL Amps 335
  • 50 Hertz Voltage 380
  • is_motor Yes
  • KVA-CODE F
  • 50 Hertz FL eFF 94.50 Percent
  • 60 HERTZ kW 224
  • 60 HERTZ RPMS 3600
  • MODEL NUMBER 447TSTDN7001
