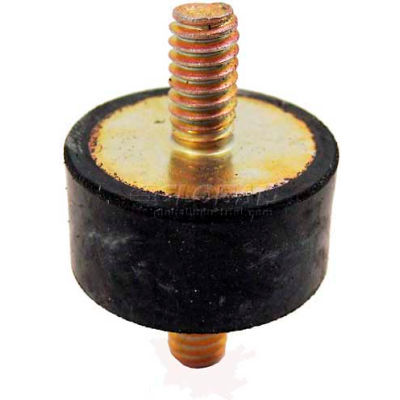

Vibration Mount, 2 Threaded Studs, 2.00" Dia, 1.63"H, 3/8-16 Thread

Vibration Mount, 2 Threaded Studs, 2.00" Dia, 1.63"H, 3/8-16 Thread

Item #: WBB831570

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 560 Ft. Lbs.
  • 576 Ft. Lbs.

576 Ft. Lbs.

Price: $9.30

Quantity

Customers Also Viewed

Vibration Mount, 2 Threaded Studs, 2.00" Dia, 1.63"H, 3/8-16 Thread

Vibration isolation mounts, also known as vibration mounts, anti-vibration mounts, vibration bobbins or rubber bumpers, are suitable for the elastic mounting of machine units such as motors, compressors and pumps. These rubber mounts are simple and economical construction elements. Their resilience and their broad range of different sizes and dimensions allow these mounts to be used in many applications that require vibration isolation.

Product Specifications

  • COLOR FINISHBlack
  • BASE DIAMETER2.00"
  • BRANDJ.W. Winco
  • MANUFACTURERS PART NUMBER351.1-51-41-3/8-55
  • COVER PLATE CONSTRUCTIONSteel, Zinc Plated, Blue Passivated, Molded In
  • LOAD CAPACITY RANGE (FT. LBS.)500 - 1000 Ft. Lbs.
  • BODY MOUNTNatural rubber (NR), Vulcanized
  • MAX TRAVEL0.30"
  • HEIGHT1.63"
  • SPRING RATE1955 Ft. Lbs./In.
  • UNIT OF MEASUREMENTInch (Imperial)
  • LOAD CAPACITY (FT. LBS.)576 Ft. Lbs.
  • THREAD3/8-16
  • TAPPED INSERTS/THREADED STUDSSteel, Zinc Plated, Blue Passivated, Molded In
  • DUROMETER55
  • STUD LENGTH0.63" (1.6 cm)
  • COUNTRY OF ORIGINImport
