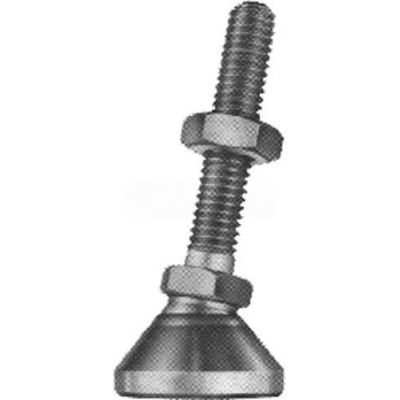

Leveling Mount, 5/16-18 x 2" Thread Length , 1.25" Base Dia, 2.88"H, 2300 Lbs. Load Cap - USA

Leveling Mount, 5/16-18 x 2" Thread Length , 1.25" Base Dia, 2.88"H, 2300 Lbs. Load Cap - USA

Item #: WBB831711

(2)

Enter postal code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 5/16-18
  • 3/8-16

5/16-18

  • SELECT
  • 2300 Lbs.
  • 20000 Lbs.

2300 Lbs.

Price: $11.50

Quantity

Customers Also Viewed

Leveling Mount, 5/16-18 x 2" Thread Length , 1.25" Base Dia, 2.88"H, 2300 Lbs. Load Cap

LPST leveling mounts swivel 10-15° to all sides of the centerline to adjust to uneven surfaces used for leveling machine tools, electronic racks, benches, etc. Large diameter pad design assures solid support. Coupling nut is not recommended to use for installation. Use nut on tapped hole of 1 - 1 1/2 times the thread diameter being used. To insure proper leveling mount size, divide the machine weight by the number of mounts required. This will equal the pounds or load per mount. Maximum load ratings for leveling mounts with elastomer pad are based on a calculation of 40% distortion to the elastomer pad. This insures the proper application requirements when using the bore with the non-skid elastomer pad. For certain minimum quantities, modifications such as lag bolt holes and other versions of plating are available upon request. Heat resistance for Delrin base mounts: Continuous operating temperature--82°C (180°F); melting point--175°C (347°F).

Product Specifications

  • BASE DIAMETER1.25" (3.18 cm)
  • BRANDJ.W. Winco
  • CONSTRUCTIONYellow Zinc Plated Steel
  • MANUFACTURERS PART NUMBER5T2LIT
  • THREADED STUD & HEX NUTZinc Plated Steel
  • UNIT OF MEASUREMENTInch (Imperial)
  • LOAD CAPACITY RANGE (LBS.)1000 - 2500 Lbs.
  • THREAD5/16-18
  • LOAD CAPACITY (LBS.)2300 Lbs.
  • HEIGHT2.88"
  • STUD LENGTH2.00" (5.08 cm)
  • COUNTRY OF ORIGINMade in USA
Customer Review

5.0

  • 5 Star

    2
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: LEANNE

    Date: September 03, 2020

    Perfect product for the perfect job
    Your review:
    The leveling mount was placed on a porch swing legs to keep the bottom of the legs from getting wet. Easy to install by a novice (me) and they do the job. Excellent quality. My neighbor who is a carpenter was even impressed by the leveling mount.
  • Reviewer: Daniel

    Date: August 07, 2019

    What Amazing Feet!
    Your review:
    These feet are so amazing. They just sit there at the bottom of my legs and make everything leveler. I can even screw them up and down if I want to be tilty that day.
Product Q & A

There are no questions for this product.
