Marathon Motors F103, 3/4HP, 115/208-230V, 1800RPM, 1PH, TEFC, 56 FR

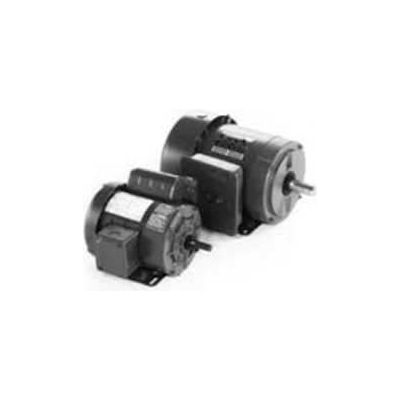

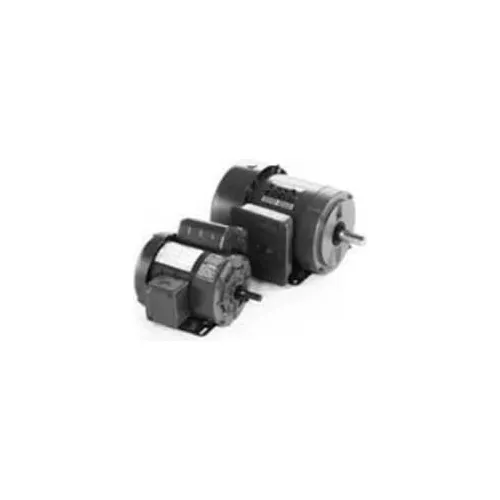

Actual product may differ from image shown

Marathon Motors F103, 3/4HP, 115/208-230V, 1800RPM, 1PH, TEFC, 56 FR

Item #: WBB868768

(1)

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $294.95

Quantity Discount

  • Buy 1-2 $294.95 ea.
  • Buy 3+ $283.95 ea.

Quantity

Customers Also Viewed

Marathon Motors F103, 3/4HP, 115/208-230V, 1800RPM, 1PH, TEFC, 56 FR

These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.

  • HORSEPOWER 3/4
  • ENCLOSURE TEFC
  • FRAME 56
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1725
  • RPM 1725
  • PHASE 1
  • VOLTAGE 115/230
  • SERVICE FACTOR 1.15
  • THERMAL PROTECTION Manual Protector
  • AMBIENT TEMP C 40
  • ROTATION CCW
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING Ball
  • WEIGHT 29 (13.18 kg)
  • UL Recognized Construction and Protector
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER F103
  • RPM RANGE 1701-1800
  • INSULATION CLASS B
  • FL AMPS 11/5.4-5.5
  • OPPOSITE END BEARING SIZE Ball
  • DRIVE END BEARING SIZE 6203
  • ASSEMBLY F1 Only
  • BEARING-DRIVE-END 6203
  • ORIENTATION Horizontal
  • IP CODE 43
  • STARTING TYPE Cap Start Ind Run
  • NEMA DESIGN N
  • CATALOG NUMBER F103
  • KVA-CODE L
  • is_motor Yes
  • KILOWATS 0.56
  • MODEL NUMBER 56C17F5326
