Actual product may differ from image shown
Price: $620.00
Quantity Discount
- Buy 1-2 $620.00 ea.
- Buy 3+ $596.00 ea.
Customers Also Viewed

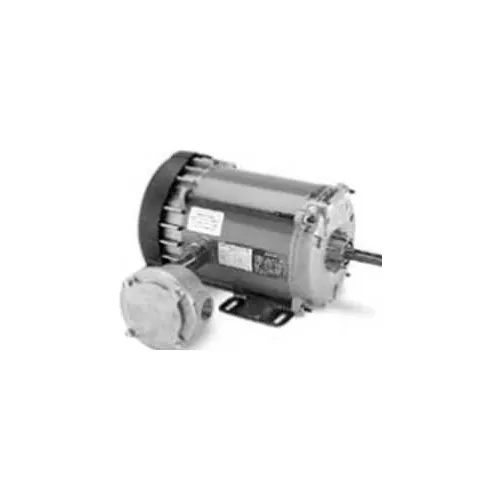

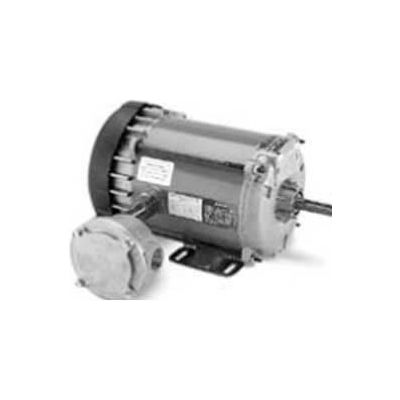

Marathon Motors Explosion Proof Motor, G661, 56T17G5313, 3/4HP, 208-230/460V, 1800RPM, 3PH, EPFC
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
- HORSEPOWER 3/4
- ENCLOSURE EPFC
- FRAME 56
- BRAND Marathon Motors
- MOUNTING Rigid
- MOTOR RPM 60Hz 1800
- RPM 1800
- PHASE 3
- VOLTAGE 208-230/460
- HERTZ 60
- SERVICE FACTOR 1
- THERMAL PROTECTION Automatic Protector
- AMBIENT TEMP C 40
- ENCLOSURE TYPE Explosion Proof
- OPPOSITE END BEARING Ball
- WEIGHT 30 (13.64 kg)
- UL UL Listed
- DUTY Continuous
- MANUFACTURERS PART NUMBER G661
- RPM RANGE 1701-1800
- INSULATION CLASS B
- HAZARDOUS LOCATION EXP PROOF CL I GR C&D CL II GR F&G T3B
- FL AMPS 2.9-3.0/1.5
- OPPOSITE END BEARING SIZE 6203
- DRIVE END BEARING SIZE 6203
- ASSEMBLY F1 Only
- BEARING-DRIVE-END 6203
- ORIENTATION Horizontal
- IP CODE 54
- STARTING TYPE Across the Line
- NEMA DESIGN B
- CE N
- is_motor Yes
- KVA-CODE L
- 60 HERTZ kW 0.56
- 60 HERTZ RPMS 1800
- MODEL NUMBER 56T17G5313
