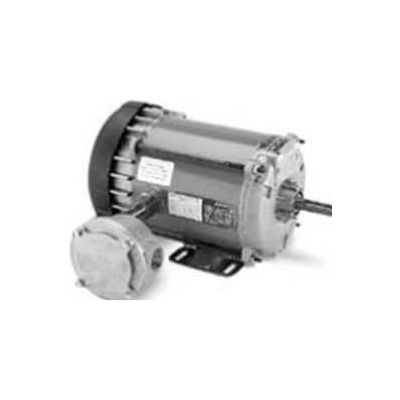

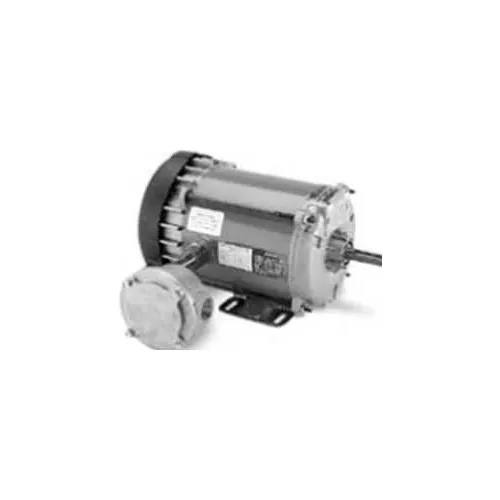

Marathon Motors Explosion Proof Motor, G652, 056C11G5307, 1/3HP, 115/208-230V, 1200RPM, 1PH, EPFC
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
- HORSEPOWER 1/3
- ENCLOSURE EPFC
- FRAME 56
- BRAND Marathon Motors
- MOUNTING Rigid
- MOTOR RPM 60Hz 1200
- RPM 1200
- PHASE 1
- VOLTAGE 115/208-230
- HERTZ 60
- SERVICE FACTOR 1
- THERMAL PROTECTION Automatic Protector
- AMBIENT TEMP C 40
- ROTATION CCW
- ENCLOSURE TYPE Explosion Proof
- OPPOSITE END BEARING Ball
- WEIGHT 31 (14.09 kg)
- UL UL Listed
- DUTY Continuous
- MANUFACTURERS PART NUMBER G652
- RPM RANGE 1101-1200
- INSULATION CLASS B
- HAZARDOUS LOCATION EXP PROOF CL I GR C&D CL II GR F&G T3B
- FL AMPS 7.8/3.6-3.9
- OPPOSITE END BEARING SIZE 6203
- DRIVE END BEARING SIZE 6203
- ASSEMBLY F1 Only
- BEARING-DRIVE-END 6203
- ORIENTATION Horizontal
- IP CODE 54
- STARTING TYPE Cap Start Ind Run
- NEMA DESIGN No Design Code
- CE N
- KVA-CODE N
- is_motor Yes
- 60 HERTZ kW 0.25
- MODEL NUMBER 056C11G5307
