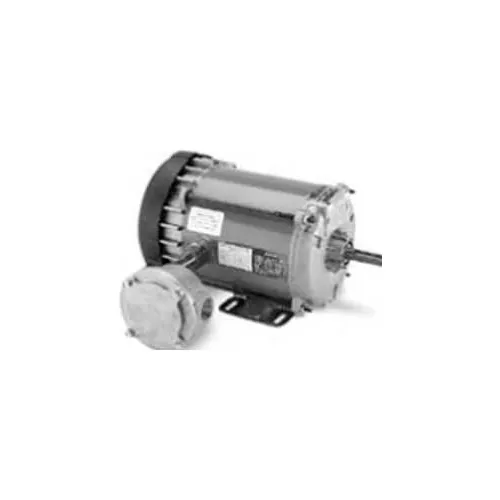

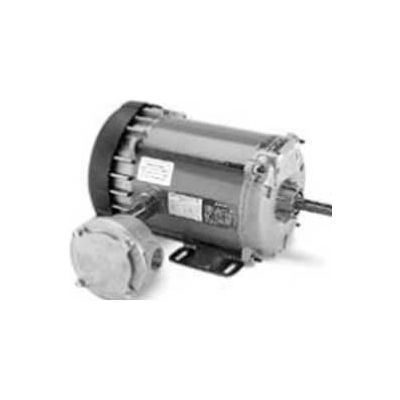

Marathon Motors Explosion Proof Motor, G649, 56T17G5312, 1/2HP, 208-230/460V, 1800RPM, 3PH, EPNV

Actual product may differ from image shown

Marathon Motors Explosion Proof Motor, G649, 56T17G5312, 1/2HP, 208-230/460V, 1800RPM, 3PH, EPNV

Item #: WBB868799

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $555.00

Quantity

Customers Also Viewed

Marathon Motors Explosion Proof Motor, G649, 56T17G5312, 1/2HP, 208-230/460V, 1800RPM, 3PH, EPNV

Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.

  • HORSEPOWER 1/2
  • ENCLOSURE EPNV
  • FRAME 56
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 208-230/460
  • HERTZ 60
  • SERVICE FACTOR 1
  • THERMAL PROTECTION Automatic Protector
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Explosion Proof
  • OPPOSITE END BEARING Ball
  • WEIGHT 28 (12.73 kg)
  • UL UL Listed
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER G649
  • RPM RANGE 1701-1800
  • INSULATION CLASS B
  • HAZARDOUS LOCATION EXP PROOF CL I GR C&D CL II GR F&G T3B
  • FL AMPS 2.3-2.4/1.2
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6203
  • ASSEMBLY F1 Only
  • BEARING-DRIVE-END 6203
  • ORIENTATION Horizontal
  • IP CODE 54
  • STARTING TYPE Across the Line
  • NEMA DESIGN No Design Code
  • CE N
  • FL EFFICIENCY 68
  • is_motor Yes
  • KVA-CODE M
  • 60 HERTZ kW 0.37
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 56T17G5312
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • Is this class 2 div 2?

    Question Asked By: Michael, October 01, 2018

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Michael, no this item is not Class 2 Div 2 rated. Thank you for your interest in our product.
