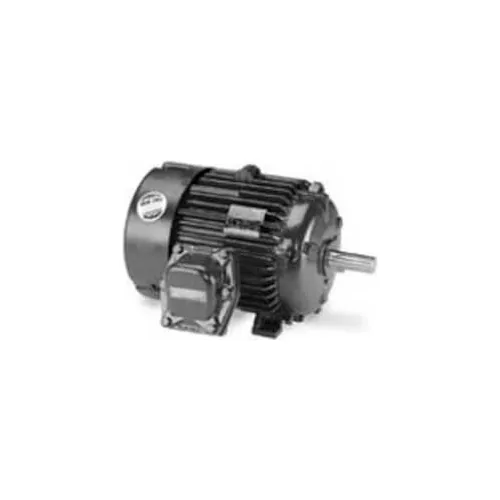

Actual product may differ from image shown
Price: $11,382.00
Customers Also Viewed
Marathon Motors Explosion Proof Motor, E574, 404TTGS6588, 60HP, 230/460V, 1200RPM, 3PH, EPFC
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
- HORSEPOWER 60
- ENCLOSURE EPFC
- FRAME 404T
- BRAND Marathon Motors
- MOUNTING Rigid
- MOTOR RPM 60Hz 1200
- RPM 1200
- PHASE 3
- VOLTAGE 230/460
- HERTZ 60
- SERVICE FACTOR 1.15
- THERMAL PROTECTION Thermostats (Normally Closed)
- AMBIENT TEMP C 40
- ENCLOSURE TYPE Explosion Proof
- OPPOSITE END BEARING Ball
- WEIGHT 1295 (588.64 kg)
- UL UL Listed
- DUTY Continuous
- MANUFACTURERS PART NUMBER E574
- RPM RANGE 1101-1200
- INSULATION CLASS F
- HAZARDOUS LOCATION EXP PROOF CL I GR C&D CL II GR F&G T3B
- INVERTER SPEED RANGE Constant 10:1
- FL AMPS 144/72
- OPPOSITE END BEARING SIZE 6313
- DRIVE END BEARING SIZE 6316
- ASSEMBLY F1 Only
- BEARING-DRIVE-END 6316
- ORIENTATION Horizontal
- IP CODE 54
- STARTING TYPE Line or Inverter
- NEMA DESIGN B
- CE N
- FL EFFICIENCY 94.5
- is_motor Yes
- KVA-CODE G
- 60 HERTZ kW 45
- 60 HERTZ RPMS 1200
- MODEL NUMBER 404TTGS6588
