$54.93 up to 18% OFF
Price: $47.95
Quantity Discount
- Buy 1-5 $47.95 ea.
- Buy 6+ $44.95 ea.
Customers Also Viewed

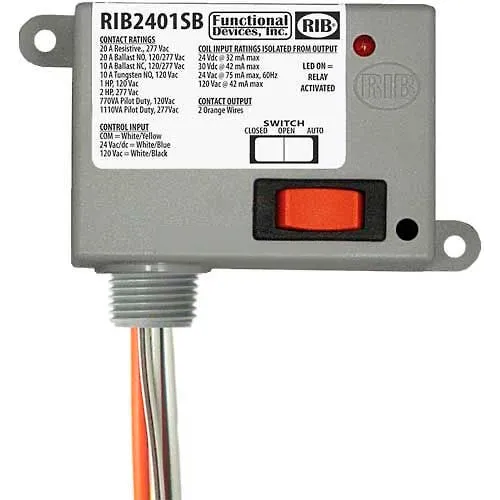

RIB® Enclosed Power Relay RIB2401SB, 20A, SPST-NO, 24VAC/DC/120VAC, Override
The Power Series contains relays that are rated at 20 or 30 Amp. They have been packaged to save the installer the time, trouble and expense of buying separate components (relay, LED indicator, socket, mounting rail, transient protection and housing) and assembling them on the job or at the shop.
The Power Series contains relays that are rated at 20 or 30 Amp. They have been packaged to save the installer the time, trouble and expense of buying separate components (relay, LED indicator, socket, mounting rail, transient protection and housing) and assembling them on the job or at the shop.
Product Details
- Operating Temperature -30° To 140°F
- Humidity Range 5 To 95 Percent (Noncondensing)
- Voltage 24VAC/DC 120VAC V
- Expected Relay Life 10 Million Cycles Minimum Mechanical
- Description Enclosed Power Relay W/Override
- Number of Relays 1
- Amperage 20 A
- Wire Rating 600V
- Brand RIB
- Warranty 1 YR
- Manufacturers Part Number RIB2401SB
- Contact Type SPST
Weights & Dimensions
- Width 3.2 IN (8.13 cm)
- Length 2.3 IN (5.84 cm)
- Height 1.8 IN (4.57 cm)
- Wire Size 16 IN (40.64 cm)
Compliance & Certifications
- Certifications UL Listed
