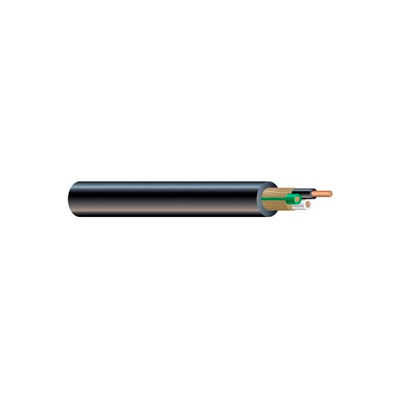

Southwire 16-26 2/C CU SJOOW PAPER BLACK 90(D)C 300V

Southwire 16-26 2/C CU SJOOW PAPER BLACK 90(D)C 300V

Item #: WBB242089

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $69.95

Quantity

Customers Also Viewed

16/2 SJOOW Black

Applications
Southwire Type SJOOW Flexible Cords are permitted for use as specified by Article 400 and related articles of the National Electrical Code. Some typical applications for Type SJOOW Cords include wiring for portable tools, portable appliances,equipment, small motors and associated machinery.

Specifications
Southwire Type SJOOW Flexible Cords meet or exceed all applicable requirements of UL Standard 62 (Flexible Cord and Fixture Wire), CSA Standard 22.2 No. 49 (Flexible Cords and Cables), and the Mine Safety and Health Administration (MSHA) Flame Resistance for Mining Applications. This product complies with the requirements of Federal and Military Specification JC-580B, NEC Article 400, OSHA acceptable and is RoHS Compliant.

Construction
Southwire Type SJOOW Flexible Cords are manufactured using bare flexible stranded Class K copper conductors, and heat, moisture and oil resistant EPDM rubber insulation. The insulated conductors are cabled with non-wicking polypropylene fillers, with a tissue-paper separator wrapped around the assembly to promote easier removal of the jacket. A heat, moisture and oil resistant flexible CPE jacket is extruded over the assembly to complete the construction. Sizes 18 through 10 AWG fully annealed stranded bare copper per ASTM B-174. Some sizes may be subject to minimum order quantity.

Product Specifications

  • WIRE TYPECord
  • WIRE TYPE DESCRIPTIONService Junior, Oil Resistant Jacket & Insulation, Weather Resistant
  • GAUGE16
  • NUMBER OF CONDUCTORS2
  • LENGTH FT150
  • COLORBlack
  • PACKAGE TYPESpool
  • AMPACITY13
  • MAX VOLTAGE300
  • HEAT CAPACITY-40 C to 90 C
  • LOCATION USAGEWet or Dry
  • INSULATIONEPDM
  • BRANDSouthWire®
  • SO SIZE16/2 SJOOW
  • MANUFACTURERS PART NUMBER55811846
