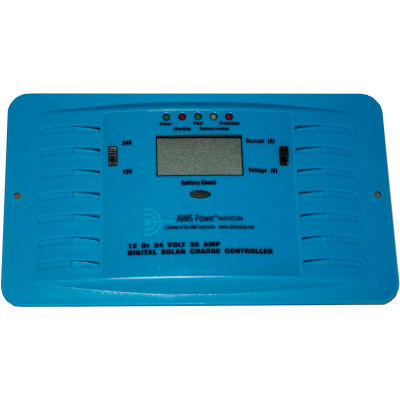

AIMS Power 30 Amp PWM Solar Charge Controller, SCC30A
The AIMS 30 amp solar charge controller is ideal for smaller solar arrays and DIY projects. This charge controller is capable of handling 400 watts worth of solar panels for a 12V battery bank and 800 watts at 24Vdc. The Charge Controller comes with a digital display with selectable Amperage or Voltage monitoring. Its small size means mounting options are limitless. At just under 7 -1/2 inches by 5 inches, this solar charge controller can fit in the tightest of confines, making it easy to mount in a vehicle, on a boat, in a cabin or wherever you deem fit. The Charge Controller is equipped with Solar Over-Current protection, limiting the amount of voltage delivered to the batteries to their respective voltage limits. It also comes with reverse polarity protection, short circuit protection and high temperature protection.
Features:
Dimensions
Specifications:
Specifications:
The AIMS 30 amp solar charge controller is ideal for smaller solar arrays and DIY projects. This charge controller is capable of handling 400 watts worth of solar panels for a 12V battery bank and 800 watts at 24Vdc. The Charge Controller comes with a digital display with selectable Amperage or Voltage monitoring. Its small size means mounting options are limitless. At just under 7 -1/2 inches by 5 inches, this solar charge controller can fit in the tightest of confines, making it easy to mount in a vehicle, on a boat, in a cabin or wherever you deem fit. The Charge Controller is equipped with Solar Over-Current protection, limiting the amount of voltage delivered to the batteries to their respective voltage limits. It also comes with reverse polarity protection, short circuit protection and high temperature protection.
Features:
- Selectable for both 12 volts and 24 volts
- 2 State Charging
- LCD Display - Voltage and current
- LED Display - Power, Charging, Float, Reverse polarity, protection
- Input protection
- Reverse polarity protection
- Gel or lead acid batteries
- Battery check button
- Short circuit protection
- Solar over current protection
- High Temperature protection
- Convenient pre-drilled holes for mounting
- Weight: 9 oz
Dimensions
- 7.13"L x 4.25"W x 1.13"H 12 Volt Solar System Charging
Specifications:
- Maximum solar panel array: 400 watts
- Input voltage: 16.5V-22V
- Max input voltage: 25V
- Max charging current: 30A
- Constant voltage for battery: about 14.2V
- Float voltage: 13.5V
- LCD displays volts and current
- Solar panel array: 6 AWG cable or larger
- Battery: 10 AWG cable or larger 24 Volt Solar System Charging
Specifications:
- Maximum solar panel array: 800 watts
- Input voltage: 33V-40V
- Max input voltage: 45V
- Max charging current: 30A
- Constant voltage for battery: about 29.2V
- Float voltage: 27V
- LCD displays volts and current
- Solar panel array: 6 AWG cable or larger
- Battery: 6 AWG cable or larger
Product Specifications
- WEIGHT LBS1 (.45 kg)
- HEIGHT INCHES1-3/16 (3.02 cm)
- WIDTH INCHES4-1/4 (10.8 cm)
- LENGTH INCHES7-1/8 (18.1 cm)
- INTERNAL FUSE PROTECTIONYes
- DC INPUT / OPERATING VOLTAGE12/24VDC
- MANUFACTURERS PART NUMBERSCC30A
- BRANDAIMS Power
