Features:
- Rugged "V" Style Three Cylinder Compressor Pump With Cast Iron Cylinders
- "V" Style Design Minimizes Vibration, Improves Cooling, And Extends Compressor Life
- 1 Year Commercial Use Warranty
- Individual And Removable Cylinders For Smoother Cooler Operation And Easy Maintenance
- 30 Gal. Horizontal Asme Registered Tank Designed To Fit Within A Service Truck Bed
- Easy View Oil Sight Gauge
- High Efficiency Reed Valves For Maximum Performance
- Sturdy Metal Belt Guard
- Heavy Duty ¾" Ball Valve Included
- Conveniently Extended Oil Drain For Clean And Easy Maintenance
- Assembled In The Usa
- Heat Treated Crank Shaft With "Dual" Ball Bearings
- Extended Tank Drain With Lever Type Ball Valve To Conveniently Drain Moisture From The Tank
- Long Lasting Powder Coat Finish
- Commercial Gx290 Honda Electric Start 290Cc Engine
- Automatic Idle Control Valve Extends Engine And Compressor Life And Allows For More Efficient Operation By Reducing Fuel Consumption
Weights & Dimensions
- Weight 384 LBS (174.55 kg)
- Tank Size 30 GAL (113.56 l)
- Width 40 IN (101.6 cm)
- Tank Outlet 3/4"
- Length 49 IN (124.46 cm)
- Height 53 IN (134.62 cm)
Product Details
- Tank Drain Valve Manual
- Pump Type Single-Stage
- Air Dryer No
- Air Filter No
- CFM @ 90 PSI 18.5 CFM
- Type Stationary
- After Cooler No
- Engine Horsepower 9 HP
- Tank Orientation Horizontal
- Material Cast Iron
- Style Truck Mount
- Fuel Type Gasoline
- Oil System Splash Lubricated
- Oil Sight Glass Yes
- CFM 18.5 CFM
- Voltage 12 V
- Pump Material Cast Iron
- Description Gas Driven Two Stage Air Compressor Tankless
- Low Oil Shutoff No
- Oil Type Oil Lubricated
- Horsepower 9 HP
- Max PSI 150 PSI
- Brand Honda
- Start Type Electric/Recoil
- Pump Drive Belt Drive
- Manufacturers Part Number 9G30TRKE-H
- Color Blue
Warranty
- Warranty 1 YR
Compliance & Certifications
- Certifications ASME
Customer Review
Product Q & A
There are no questions for this product.
Accessories

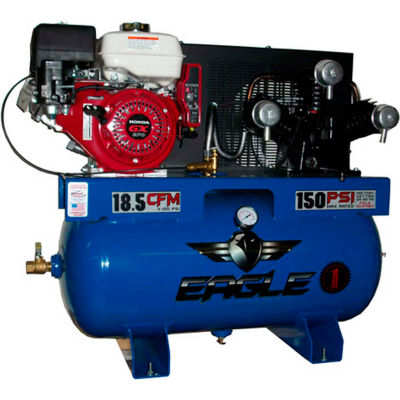

Eagle 9G30TRKE-H, 9HP, Stationary Gas Compressor, 30 Gal, 150 PSI, 18.5 CFM, Honda, Electric/Recoil
