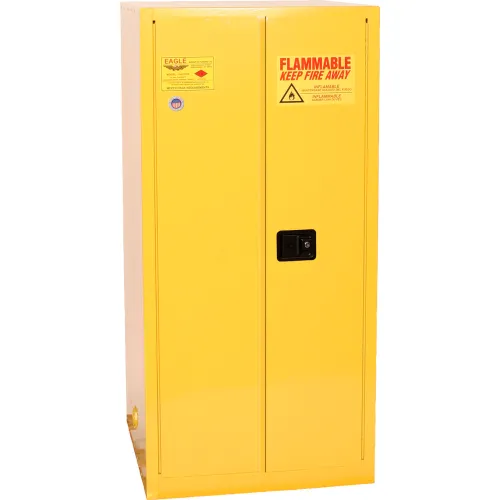

Eagle Mfg Drum Cabinet 55 Gal. Capacity Vertical Manual Close Flammable W/ Drum Supports

Item #: WBB214633

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

Eagle Mfg Drum Cabinet 55 Gal. Capacity Vertical Manual Close Flammable W/ Drum Supports
Eagle Mfg Drum Cabinet 55 Gal. Capacity Vertical Manual Close Flammable W/ Drum Supports

Global Industrial™ Carbon Steel Drum 55 Gallon Open Head

$450.95
Eagle Mfg Drum Cabinet 55 Gal. Capacity Vertical Manual Close Flammable W/ Drum Supports

Global Industrial™ Carbon Steel Drum 30 Gallon Open Head

$384.95
Eagle Mfg Drum Cabinet 55 Gal. Capacity Vertical Manual Close Flammable W/ Drum Supports

Wesco® 4-Wheel Dispensing Drum Truck 240005 for 30 & 55 Gal Steel Drums

$512.00

Price: $2,828.00

Quantity

Customers Also Viewed

StrongHold® Drum Cabinet 110 Gal. Capacity Vertical Manual Close Flammable

Justrite® Drum Cabinet 110 Gal. Capacity Vertical Manual Close Flammable W/ Drum Support

◄

►

Eagle's 55 Gallon, manual close, Vertical Drum Storage Safety Cabinet, can safely contain a 55-gallon drum of flammable liquid. The cabinet features a convenient half shelf for additional storage space for accessories or containers and drum supports to keep drums elevated off cabinet sump. Constructed of 18-gauge (1 mm) steel, the sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets meet NFPA Code 30 and OSHA requirements.

Features:

Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
Constructed of 18-gauge steel
Lead-free, high-gloss, baked-on powder finish
Continuous piano hinges
Ground connection
Four adjustable galvanized leveling legs
Trilingual warning labels
2 in (5.1 cm) raised leakproof sill
Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
Internal and external welded construction
Two 2 in (5.1 cm) internal vents with fire baffle and cap
Flush mounted door handle with key lock
Three-point stainless steel bullet latching system
3 in (7.6 cm) centers for shelf brackets
Self-latching doors
Door closings: Manual Close (180° opening)
Internal Dimensions: 30.75"W x 30.34"D x 60.5"H

Some state and municipalities may require self-closing doors on flammable safety cabinets. This cabinet has manual closing doors, please review your local ordinances prior to purchasing.

Weights & Dimensions

Depth 34 in (86.36 cm)
Width 34 in (86.36 cm)
Height 65 in (165.1 cm)
Gauge 18 ga
Weight 288 lbs (130.91 kg)

Product Details

Number of Adjustable Shelves 1
Number of Shelves 1
Handle Type Recessed
Capacity 55 gal (208.2 l)
Construction Type Assembled
Lock Type Keyed Alike
Type Flammable
Brand Eagle Mfg
Door Type Manual Close
Material Steel
Style Vertical
Shelf Capacity 350 lbs (159.09 kg)
Manufacturers Part Number 1926X
Color Yellow

Warranty

Warranty 10 yr

Compliance & Certifications

Certifications CFR, NFPA 30, OSHA

Photo/Video Gallery

Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

Is the 31 1/4" depth and width dimension the external or internal measurement? I'd like to know the internal measurements.

Question Asked By: Mike, January 04, 2017

Answer This Question
Question Answered By:
- anonymous

  Hello Mike, That would be the external dimensions. The internal dimensions are 28-1/4" W x 28-1/4" D x 62" H. Thank you for your interest in our product!
