Construction:<ul style="margin-top:0px; padding-top: 5px; padding-bottom: 5px;"><li>Base Material: Nylon</li><li>Face Material: Nylon</li><li>Line Contacts: High Performance Brass</li><li>Clamp Nut: Steel</li><li>Mounting Yoke: Steel, Nickel and Brass Plated 050" (13)</li><li>Grounding Screws: Combination Brass (Green) #8-32</li><li>Grounding Clamp Nut: Brass</li><li>Auto ground clip: High Performance Brass</li><li>Mounting Screw: Combination Steel Zinc-Plated</li><li>Terminal Identification: Brass-Hot; Green-Grounding; Silver-Neutral</li><li>Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only</li></ul>Technical Specs:<ul style="margin-top:0px; padding-top: 5px; padding-bottom: 5px;"><li>Circuit ID: Hot Stamp</li><li>Dielectric Voltage: Withstands 2000V per UL498</li><li>Maximum Working Voltage: 250V AC or DC</li><li>Current Interrupting: Certified for current interrupting at full rated current</li><li>Temperature rise: Less than 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL484</li><li>Flammibility: UL 94 V2</li><li>Operating Temperature: Maximum Continuous 60 deg C, Minimum -40 deg C (w/o impact)</li></ul>Standards:<ul style="margin-top:0px; padding-top: 5px; padding-bottom: 5px;"><li>NEMA#: 5-20R</li><li>CSA Standards: Cetrified to CSA Standard C222 No 42M1984 (General Use Receptacles)</li><li>Ul Listing: UL Listed, File #E2258- Guide #RTRT</li><li>Federal Specifications: Federal Specification WC596 (where applicable)</li><li>Complies With: NEMA Standards WD-1, WD-6</li><li>Overseas_Approval: NOM, CE</li></ul>

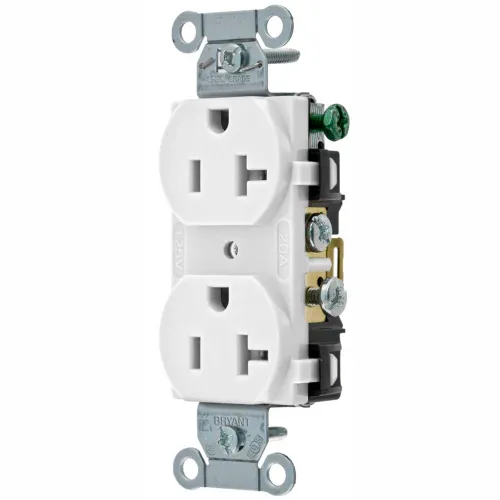

Bryant CRS20W Commercial Grade Duplex Receptacle, 20A, 125V, White, Side Wired

duplex-receptacle-comm-grd-20a-125v-5-15rwh
