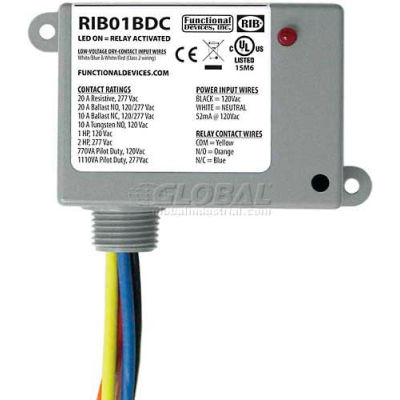

RIB® Dry Contact Input Relay RIB01BDC, Enclosed, 120VAC, 20A, SPDT
The Dry Contact Input RIB series offers all the advantages of the standard RIB line; plus, it can be activated by a wide range of dry-contacts such as thermostats, switches, other relays, solid-state switches, etc. The Dry Contact Input RIB provides the low-voltage (Class 2) power needed to activate the relay (self-powered) - just close the dry-contact input. The power to energize the relay can be brought to the relay on a separate pair of wires along with the control output of the controller, or can be a local power source near the relay. The relay contacts are isolated from the input power and the dry contact input; thus, they can be wired to switch any other power-load or low-voltage load (see specifications for contact ratings). One model can be used for many installations (model RIB21CDC can operate from any voltage from 120Vac - 277Vac; see specifications for the input power of other models).
The Dry Contact Input RIB series offers all the advantages of the standard RIB line; plus, it can be activated by a wide range of dry-contacts such as thermostats, switches, other relays, solid-state switches, etc. The Dry Contact Input RIB provides the low-voltage (Class 2) power needed to activate the relay (self-powered) - just close the dry-contact input. The power to energize the relay can be brought to the relay on a separate pair of wires along with the control output of the controller, or can be a local power source near the relay. The relay contacts are isolated from the input power and the dry contact input; thus, they can be wired to switch any other power-load or low-voltage load (see specifications for contact ratings). One model can be used for many installations (model RIB21CDC can operate from any voltage from 120Vac - 277Vac; see specifications for the input power of other models).
Weights & Dimensions
- Width 3.2 IN (8.13 cm)
- Length 2.3 IN (5.84 cm)
- Height 1.8 IN (4.57 cm)
- Wire Size 16 IN (40.64 cm)
Product Details
- Operating Temperature -30° To 140°F
- Pilot Duty 1110 VA
- Humidity Range 5 To 95 Percent (Noncondensing)
- Voltage 120VAC V
- Description Dry Contact Input Relay
- Expected Relay Life 10 Million Cycles Minimum Mechanical
- Number of Relays 1
- Amperage 20 A
- Wire Rating 600V
- Brand RIB
- Motor Horsepower 2 HP
- Warranty 1 YR
- Manufacturers Part Number RIB01BDC
- Contact Type SPDT
Compliance & Certifications
- Certifications UL Listed, UL916, C-UL, CE, RoHS
