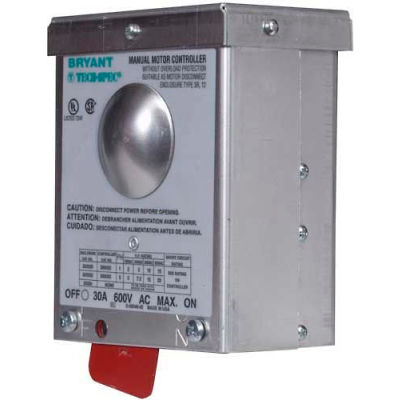

Die Cast aluminum NEMA 3R Enclosed Switch

Die Cast aluminum NEMA 3R Enclosed Switch

Item #: WBB864054

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $74.95

Quantity

Customers Also Viewed

NEMA 3R Enclosure with Controller/Disconnect is ideal for use in outdoor environments.

  • BRAND Bryant
  • MAX VOLTAGE 600V AC RMS
  • ELECTRICAL LIFE 6,000 CYCLES AT RATED SWITCH LOAD
  • DIELECTRIC VOLTAGE 2,200V AC MINIMUM FOR 1 MINUTE
  • BOX ENCLOSURE NEMA 3R ALUMINUM
  • AMPS 30
  • SHORT CIRCUIT WITHSTAND RATING AS MOTOR DISCONNECT 60A MAX J FUSES 10,000 RMS
  • UL LISTING UL 508 Industrial Control Equipment File # E70402
  • 600V AC 15
  • 480V AC 10
  • 240V AC 5
  • TERMINAL TORQUE 20 INCH POUNDS
  • TERMINAL ACCOMODATIONS AWG MIN. #14 - AWG MAX. #10
  • FLAMMABILITY UL94HB/VO
  • DEPTH INCHES 3.3 (8.38 cm)
  • CSA LISTING CSA-C22.2 No. 14 Industrial Control Equipment File # LR-46186
  • 120V AC 2
  • PRODUCT TYPE Motor Control SW T
  • POLES 2
  • WEIGHT LBS 1.5 (.68 kg)
  • LENGTH INCHES 5.52 (14.02 cm)
  • WIDTH INCHES 4.4 (11.18 cm)
  • PHASE 1
  • OPERATING TEMPERATURES MAX. CONTINUOUS 60 DEG. C., MIN. CONTINUOUS W/OUT IMPACT -40 DEG C.
  • SHORT CIRCUIT WITHSTAND RATING AS MOTOR CONTROLLER 125A MAX RK5 FUSES
