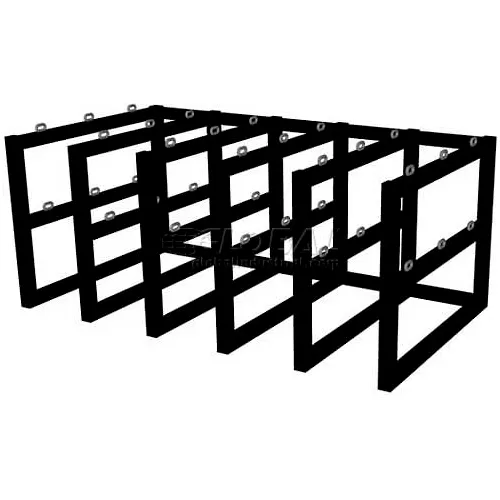

Cylinder Tube Rack, 5 Wide x 3 Deep, 70"W x 38"D x 30"H,15 Cylinder Capacity <ul style="margin-top:0px; padding-top: 5px; padding-bottom: 5px;"> </li><li> Holds fifteen cylinders in the vertical position from 4.0 to 12.0 inch diameter All steel, finishing, packaging, and labor made 100% in the USA and Canada </li><li> Constructed from .125 thick 2.0 x 2.0 square steel tube, welded, Grade ASTM A-500 </li><li> Full perimeter welded and sealed all junction points. Tops ground smooth and capped with HDPE polyethylene caps </li><li> Powder painted black semi gloss with UV inhibitors and electro-deposition base coat </li><li> Plated steel chain snaps </li><li> #2/0 twist loop plated steel chain with welded links included as means of support for cylinders (two per cylinder station) </li><li> Floor mounting holes included on lower tube structure have .531 inch diameter. For seismic installations, S4 rated anchor bolts, 3/8 inch diameter by 5 inch long are recommended (not included). </li><li> Units qualify for Seismic Zone 4 construction and applications. Racks meet or exceed NFPA, UFC, OSHA, CGA standards for storage of compressed gas cylinders </li><li> Dimensions: 70W x 38D x 30H </li><li> Weight: 294 lbs. </li><li> Ships via freight class 92.5 </li><li> Shipping Dimensions (on pallet): 72W. x 40D. x 36H. </li><li> Shipping Weight: 355 lbs. </li></ul>

Cylinder Tube Rack, 5 Wide x 3 Deep, 70&quot;W x 38&quot;D x 30&quot;H,15 Cylinder Cap.

cylinder-tube-rack-5-wide-x-3-deep-70w-x-40d-x-30h15-cylinder-cap
