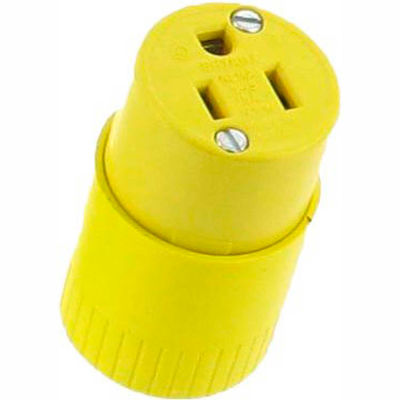

Bryant 5969BY TECHSPEC® Straight Blade Connector, 15A, 125V, Yellow, 2-Pole, 3-Wire

Bryant 5969BY TECHSPEC® Straight Blade Connector, 15A, 125V, Yellow, 2-Pole, 3-Wire

Item #: WBB214874

(1)

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $15.00

Quantity

Customers Also Viewed

Bryant 5965BY TECHSPEC® Straight Blade Plug, 15A, 125V, Yellow Thermoplastic

Bryant 5965BY TECHSPEC® Straight Blade Plug, 15A, 125V, Yellow Thermoplastic

Bryant 5965B TECHSPEC® Straight Blade Plug, 15A, 125V, Black

Bryant 5965B TECHSPEC® Straight Blade Plug, 15A, 125V, Black

Bryant CRS20W Commercial Grade Duplex Receptacle, 20A, 125V, White, Side Wired

Bryant CRS20W Commercial Grade Duplex Receptacle, 20A, 125V, White, Side Wired

Bryant BRY5266NP TECHSPEC® Straight Blade Plug, 15A, 125V, Black/White

Bryant BRY5266NP TECHSPEC® Straight Blade Plug, 15A, 125V, Black/White

Bryant BRY5269NC TECHSPEC® Straight Blade Connector, 15A, 125V, Black/White

Bryant BRY5269NC TECHSPEC® Straight Blade Connector, 15A, 125V, Black/White

Construction:
  • Terminal Screws: #8-32 Brass, Silver Finish on Neutral Screw, Green Finish on Grounding Screw
  • Face Terminal Assembly: Impact Modified Nylon
  • Cord grip: Impact Modified Nylon
  • Cover: High-Impact, V-O Valox
  • Terminal Cover: Clear Polycarbonate
  • Connector Contacts: High Performance Copper Alloy
  • Terminal Clamp Nut: Zinc-Plated Steel
  • Assembly Screws: Zinc-Plated Steel
  • Terminal Identification: Brass-Hot; Green-Grounding; Silver-Neutral
  • Terminal Accommodation: #18-#10 AWG Flexible Cord
Technical Specs:
  • Dielectric Voltage: Withstands 1500V per UL498
  • Maximum Working Voltage: 250V AC or DC
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature rise: Less than 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL498
  • Cord Grip Range: 245"-655" (62-166)
  • Flammibility: HB or Better per UL94
  • Operating Temperature: Maximum Continuous 60 deg C, Minimum -40 deg C (w/o impact)
Standards:
  • NEMA#: 5-15R
  • Cord Accomodation: Round portable service cords in accordance with device ratings as defined in UL standard 62, CSA C222 No49
  • UL Standards: UL Listed to Standard 498 (Attachment Plugs and Receptacles)
  • CSA Standards: Cetrified to CSA Standard C222 No 42M1984 (General Use Receptacles)
  • Ul Listing: UL Listed File #E1381- Guide #AXUT
  • CSA Certification: CSA Certified File #LR16215- Guide 20T2
  • Federal Specifications: Federal Specification WC596 (where applicable)
  • Complies With: NEMA Standards WD-1, WD-6
  • Overseas_Approval: NOM, CE

Product Details

  • Type Single
  • Brand Bryant
  • Voltage 125 V
  • Poles & Wires 2 Pole, 3 Wire
  • Manufacturers Part Number 5969BY
  • Amperage 15 A
  • Color Yellow

Compliance & Certifications

  • NEMA 5-15R
Customer Review

5.0

  • 5 Star

    1
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Norman

    Date: April 23, 2019

    Excellent Buy
    Your review:
    Well made, easy to wire. Unlike many other brands, it does accept 12ga wire without a problem which is very important for long extension cords.
