Marathon Motors Closed-Coupled Pump Motor, Z434, 7.5HP, 230V, 3600RPM, 1PH, 213JM FR, TEFC

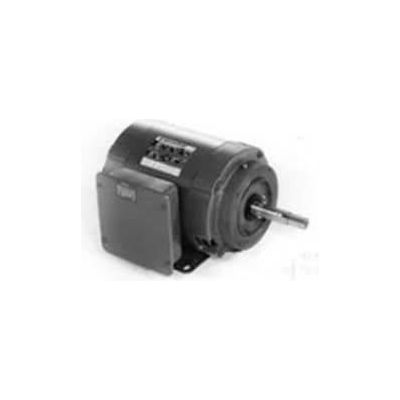

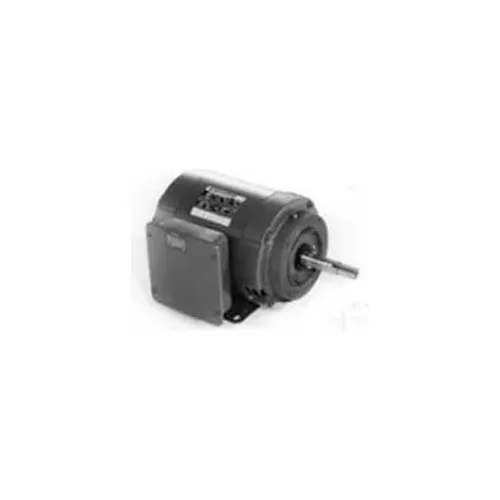

Actual product may differ from image shown

Marathon Motors Closed-Coupled Pump Motor, Z434, 7.5HP, 230V, 3600RPM, 1PH, 213JM FR, TEFC

Item #: WBB869699

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,704.00

Quantity

Customers Also Viewed

Marathon Motors Closed-Coupled Pump Motor, Z434, 7.5HP, 230V, 3600RPM, 1PH, 213JM FR, TEFC

Close-Coupled Pumps where the pump impeller is mounted directly on the motor shaft in damp, dusty or dirty environments

  • HORSEPOWER 7 1/2
  • ENCLOSURE TEFC
  • FRAME 213JM
  • BRAND Marathon Motors
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 3600
  • RPM 3600
  • PHASE 1
  • VOLTAGE 230
  • SERVICE FACTOR 1
  • AMBIENT TEMP C 40
  • ROTATION CCW
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6206
  • WEIGHT 90 (40.91 kg)
  • UL Recognized Insulation System
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER Z434
  • RPM RANGE 3001-3600
  • INSULATION CLASS F
  • FL AMPS 32
  • OPPOSITE END BEARING SIZE 6206
  • DRIVE END BEARING SIZE 6309
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6309
  • ORIENTATION Horizontal
  • IP CODE 43
  • STARTING TYPE Cap Start Cap Run
  • NEMA DESIGN L
  • CE Y
  • FL EFFICIENCY 81.5
  • is_motor Yes
  • KVA-CODE G
  • 60 HERTZ kW 5.6
  • 60 HERTZ RPMS 3600
  • MODEL NUMBER 213TBFW7010
